2.5in SS530 800GB PF SAS SSD
2.5in SS530 800GB PF SAS SSD
Product Overview

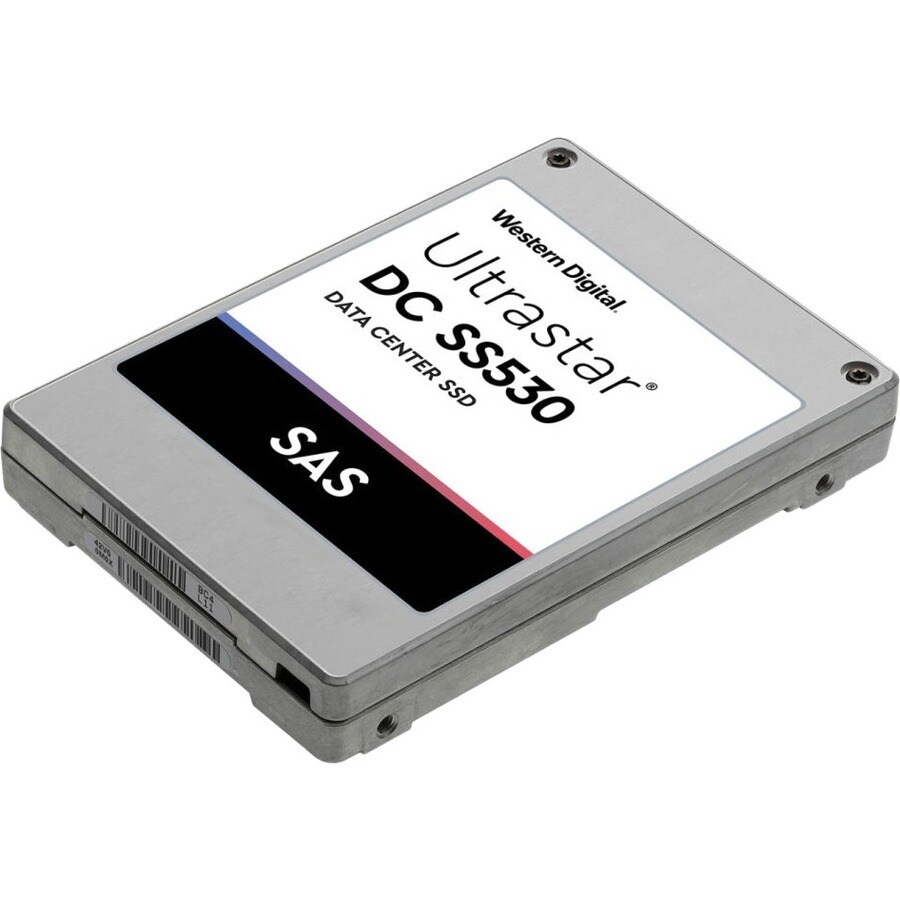

2.5in SS530 800GB PF SAS SSD
The ThinkSystem SS530 Performance SAS 12Gb SSDs use second generation 3D MLC NAND flash memory technology with a 12 Gb SAS interface to provide a high-performance storage solution in either 2.5-inch or 3.5-inch drive form factor.
The 12 Gb SAS drives with 10 full drives writes per day (DWPD) are an excellent choice for applications demanding high write performance, such as High Performance Computing (HPC), High Definition Imaging and Video (HDIV), high data rate analytics and databases, large-scale virtualization, and video on demand content delivery.
- 12Gb/s SAS interface for high speed and reliability
- The high-read speed of 1070 MB/s maximizes system performance and saves time while you are doing complex tasks
- Write speed of 1050 MB/s enables you to perform write-related tasks in seconds rather than minutes
- With a capacity of 800 GB, you have large storage space for all your documents and data
Technical Specifications
Network & Communication
| Wireless LAN | No |
Power Description
| Operating Power Consumption | 9 W |
Technical Information
| Storage Capacity | 800 GB |
Interfaces/Ports
| Drive Interface | SAS |
| Drive Interface Standard | 12Gb/s SAS |
Physical Characteristics
| Hot Swappable | Yes |
| Weight (Approximate) | 175 g |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 15 mm |
| Width | 70 mm |
| Depth | 100 mm |
| Drive Carrier | Yes |
| Drive Carrier Width | 2.5" |
Miscellaneous
| Compatibility |
|
| Device Supported | Server |
Drive Performance
| Maximum Read Transfer Rate | 1070 MB/s |
| Maximum Write Transfer Rate | 1050 MB/s |
| Endurance (DWPD) | 10 |
| Endurance (TBW) | 15585.28 TB |
| Endurance Type | Write Intensive |
General Information
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A10230 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 2.5" SS530 800GB Performance SAS 12Gb Hot Swap SSD |
| Product Series | DC SS530 |
| Brand Name | Lenovo |
Price Trend
Current Price
AUD 3,265.00
