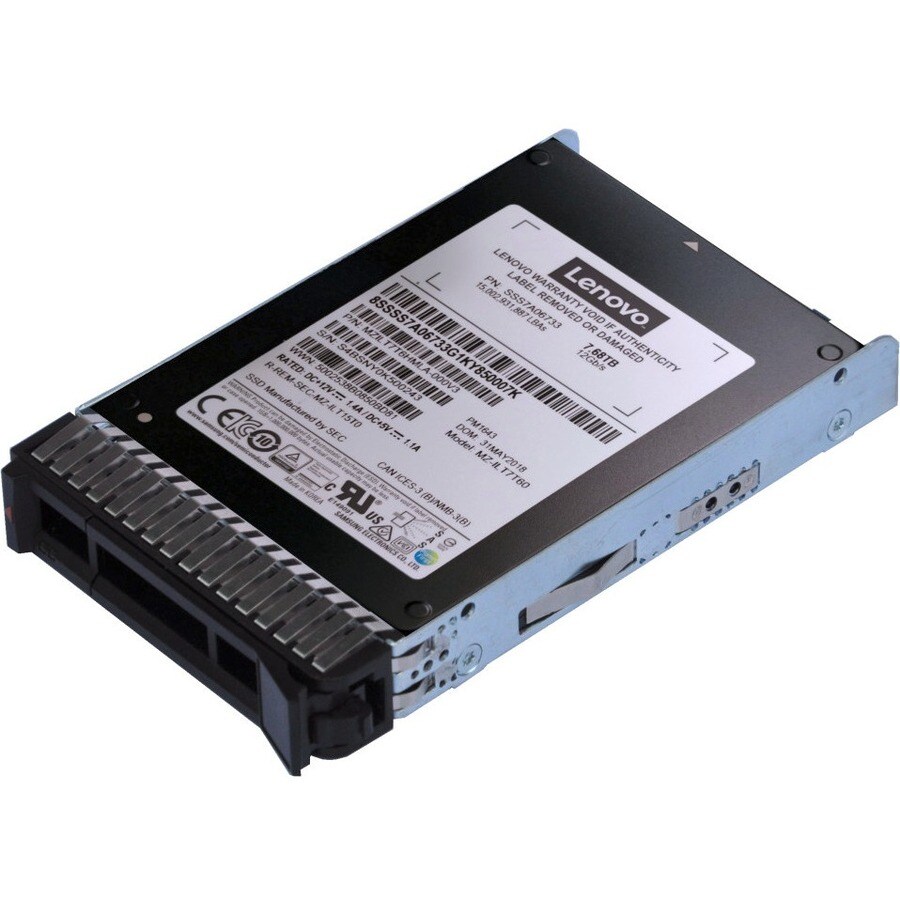

2.5in PM1643 7.68TB CP SAS SSD

2.5in PM1643 7.68TB CP SAS SSD

2.5in PM1643 7.68TB CP SAS SSD

Product Overview

2.5in PM1643 7.68TB CP SAS SSD

The ThinkSystem PM1643 Capacity SAS 12Gb solid-state drives (SSDs) are next-generation high-capacity SSDs suitable for a wide range of applications. The PM1643 Capacity SAS SSDs are designed for dense storage and with a 12 Gb SAS interface, these drives feature all the capacity and performance that is needed to replace large numbers of 15K rpm and 10K rpm spinning disks, and consolidate storage into tightly packed server configurations.

The PM1643 SSDs are the follow-on to the PM1633a SSDs and offer significantly improved performance, both for random and sequential workloads.

  • 12Gb/s SAS interface for high speed and reliability
  • The high-read speed of 2050 MB/s maximizes system performance and saves time while you are doing complex tasks
  • Write speed of 1200 MB/s enables you to perform write-related tasks in seconds rather than minutes
  • With 7.68 TB capacity you have ample space for storing millions of images, hundreds of hours of video or for music lovers, up to a million songs

Technical Specifications

Network & Communication
Wireless LANNo
Power Description
Operating Power Consumption9 W
Technical Information
Storage Capacity7.68 TB
Interfaces/Ports
Drive InterfaceSAS
Drive Interface Standard12Gb/s SAS
Miscellaneous
Compatibility
    Lenovo ThinkSystem Servers:
    • ST550 (7X09/7X10)
    • SR530 (7X07/7X08)
    • SR550 (7X03/7X04)
    • SR570 (7Y02/7Y03)
    • SR590 (7X98/7X99)
    • SR630 (7X01/7X02)
    • SR650 (7X05/7X06)
    • SR850 (7X18/7X19)
    • SR860 (7X69/7X70)
    • SR950 (7X11/12/13)
    • SD530 (7X21)
    • SN550 (7X16)
    • SN850 (7X15)
Device SupportedServer
Environmentally FriendlyYes
General Information
Product TypeSolid State Drive
Manufacturer Part Number4XB7A13646
Manufacturer Website Addresshttp://www3.lenovo.com/au/en
Packaged Quantity1
ManufacturerLenovo Group Limited
Product NameThinkSystem 2.5" PM1643 7.68TB Capacity SAS 12Gb Hot Swap SSD
Product SeriesPM1643
Brand NameLenovo
Drive Performance
Maximum Read Transfer Rate2050 MB/s
Maximum Write Transfer Rate1200 MB/s
Endurance (DWPD)1
Endurance (TBW)14016 TB
Endurance TypeRead Intensive
Physical Characteristics
Hot SwappableYes
Weight (Approximate)158 g
Drive TypeInternal
Form Factor2.5"
Height15 mm
Width70 mm
Depth100 mm
Drive CarrierYes

Price Trend

Current Price
AUD 7,464.00
