TS 2.5 U.3 3.2TB NVME PCIE HS SSD
TS 2.5 U.3 3.2TB NVME PCIE HS SSD
Product Overview

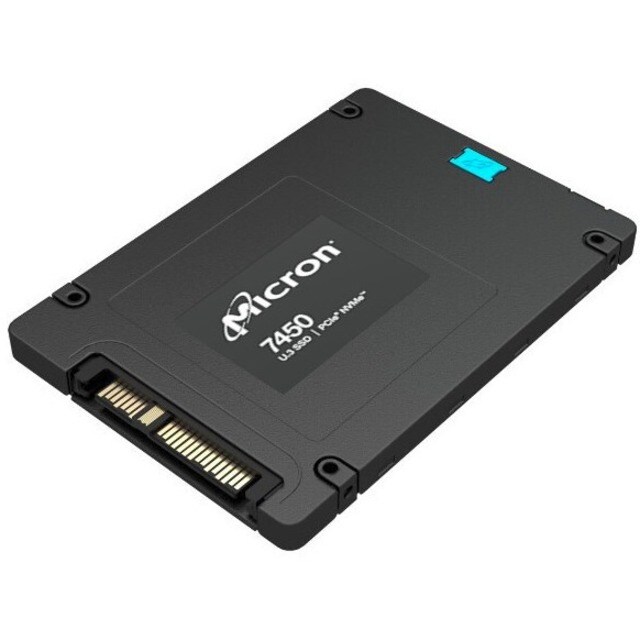

ThinkSystem 2.5in U.3 7450 MAX 3.2TB Mixed Use NVMe PCIe 4.0 x4 HS SSD
Lenovo Mixed Used SSDs like the 7450 MAX SSDs are suitable for mixed read-write and general-purpose data center workloads, however their NVMe PCIe interface means the drives also offer high performance. Overall, these SSDs provide outstanding IOPS/watt and cost/IOPS for enterprise solutions.
Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use. These features are essential for many businesses, especially those storing customer data.
- The high-read speed of 6800 MB/s maximizes system performance and saves time while you are doing complex tasks
- Write speed of 5300 MB/s enables you to perform write-related tasks in seconds rather than minutes
- Store as many documents, pictures and videos as you need with 3.20 TB capacity
- PCI Express NVMe 4.0 x4 interface provides quick data transfer and greater throughput
Technical Specifications
| Wireless LAN | No |
| Storage Capacity | 3.20 TB |
| Drive Interface | U.3 |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Compatibility |
ThinkSystem Servers: |
| Device Supported | Server |
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A13970 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 2.5" U.3 7450 MAX 3.2TB Mixed Use NVMe PCIe 4.0 x4 HS SSD |
| Product Series | 7450 MAX |
| Brand Name | Lenovo |
| Maximum Read Transfer Rate | 6800 MB/s |
| Maximum Write Transfer Rate | 5300 MB/s |
| Random 4KB Read | 100000IOPS |
| Random 4KB Write | 390000IOPS |
| Endurance (DWPD) | 3 |
| Endurance (TBW) | 17500 TB |
| Endurance Type | Mixed Use |
| Hot Swappable | Yes |
| Weight (Approximate) | 70 g |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 7 mm |
| Width | 70 mm |
| Depth | 100 mm |
