THINKSYSTEM U.2 CM5-R 1.92TB ENTRY NVME
THINKSYSTEM U.2 CM5-R 1.92TB ENTRY NVME
Product Overview

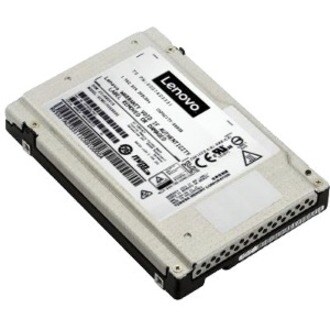

THINKSYSTEM U.2 CM5-R 1.92TB ENTRY NVME PCIE 3.0 X4 HOT SWAP SSD SED
The ThinkSystem CM5-R Entry NVMe solid-state drives (SSDs) are high-performance self-encrypting drives (SEDs) that adhere to the Trusted Computing Group Opal Security Subsystem Class cryptographic standard (TCG Opal SSC). They use Toshaba NAND flash memory technology with a PCIe 3.0 x4 NVMe interface to provide an high-performance solution for secure read-intensive workloads.
This product guide provides essential presales information to understand the CM5-R NVMe SED offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
- PCI Express 3.0 x4 interface provides enhanced bandwidth for the quick access of data by the operating system and applications
- The high-read speed of 3250 MB/s maximizes system performance and saves time while you are doing complex tasks
- Write speed of 2460 MB/s enables you to perform write-related tasks in seconds rather than minutes
- Store as many documents, pictures and videos as you need with 1.92 TB capacity
Technical Specifications
| Wireless LAN | No |
| Operating Power Consumption | 13 W |
| Storage Capacity | 1.92 TB |
| Drive Interface | PCI Express |
| Drive Interface Standard | PCI Express 3.0 x4 |
| Compatibility | Lenovo SD530 (7X21) Server |
| Device Supported | Server |
| Environmentally Friendly | Yes |
| Hot Swappable | Yes |
| Weight (Approximate) | 130 g |
| Drive Type | Internal |
| Height | 15 mm |
| Width | 70 mm |
| Depth | 100 mm |
| Maximum Read Transfer Rate | 3250 MB/s |
| Maximum Write Transfer Rate | 2460 MB/s |
| Endurance (DWPD) | 1 |
| Endurance (TBW) | 3504 TB |
| Endurance Type | Read Intensive |
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A14059 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | KCM5DRUG1T92 |
| Product Name | ThinkSystem U.2 CM5-R 1.92TB Entry NVMe PCIe 3.0 x4 Hot Swap SSD SED |
| Product Series | CM5-R |
| Brand Name | Lenovo |
