Product Overview

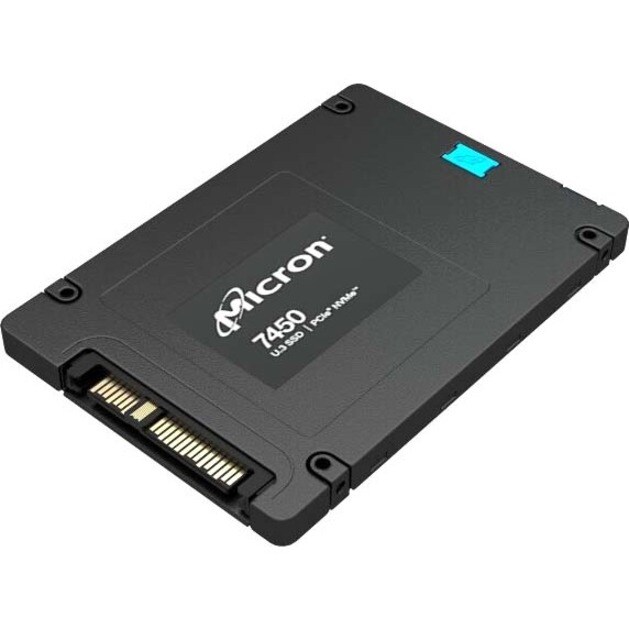

ThinkSystem 2.5in U.3 7450 MAX 800GB Mixed Use NVMe PCIe 4.0 x4 HS SSD
The ThinkSystem 7450 MAX Mixed Use NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
- With the stunning reading speed of 6800 MB/s, get faster boot times and improved overall computing performance
- With the high-write speed of 1400 MB/s, get a quick response when updating or transferring files
- With a capacity of 800 GB, you have large storage space for all your documents and data
- PCI Express NVMe 4.0 x4 interface provides quick data transfer and greater throughput
Technical Specifications
Network & Communication
| Wireless LAN | No |
Technical Information
| Storage Capacity | 800 GB |
Interfaces/Ports
| Drive Interface | PCI Express NVMe |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
Miscellaneous
| Compatibility |
ThinkSystem Servers: |
| Device Supported | Server |
Drive Performance
| Maximum Read Transfer Rate | 6800 MB/s |
| Maximum Write Transfer Rate | 1400 MB/s |
| Random 4KB Read | 530000IOPS |
| Random 4KB Write | 145000IOPS |
| Endurance (DWPD) | 2.9 |
| Endurance (TBW) | 4300 TB |
| Endurance Type | Mixed Use |
General Information
| Product Type | Solid State Drive |
| Manufacturer Part Number | 4XB7A79639 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 2.5" U.3 7450 MAX 800GB Mixed Use NVMe PCIe 4.0 x4 HS SSD |
| Product Series | 7450 |
| Brand Name | Lenovo |
Physical Characteristics
| Hot Swappable | Yes |
| Weight (Approximate) | 70 g |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Height | 7 mm |
| Width | 70 mm |
| Depth | 100 mm |
