Product Overview

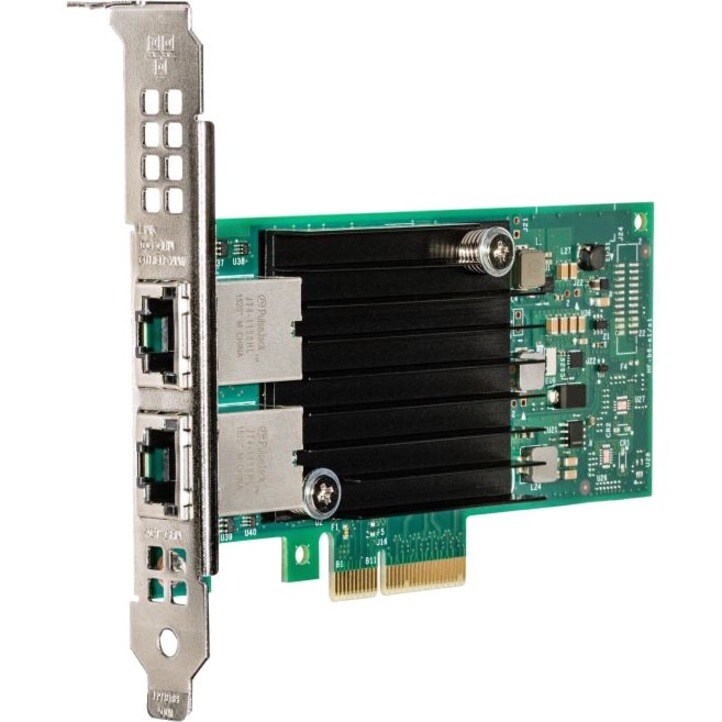

NET_BO X550-T2 2x10Gbps RJ45 PCIe
The Intel X550 10GBase-T Adapter is a low cost, low power 10 GbE performance adapter suitable for all data center applications. With support for standard CAT 6a cabling with RJ45 connectors, the X550 offers a low barrier of entry to 10 Gb Ethernet networking.
This product guide provides essential presales information to understand the Intel X550 offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Intel X550 adapters and consider their use in IT solutions.
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
- 10Gigabit Ethernet card offers the flexibility and scalability to make infrastructure run as efficiently and productively as possible with 10Gigabit data transfer rate
- This dual port 10gigabit ethernet card lets you add two network ports using a single expansion slot to a client, server or workstation
Technical Specifications
| Media Type Supported | Twisted Pair |
| Product Type | 10Gigabit Ethernet Card |
| Manufacturer Part Number | 4XC0G88856 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Model | X550-T2 |
| Product Name | ThinkServer X550-T2 PCIe 10Gb 2 Port Base-T Ethernet Adapter by Intel |
| Product Series | X550 |
| Brand Name | Lenovo |
| Device Supported | Server |
| Network Technology | 10GBase-T |
| Host Interface | PCI Express 3.0 x4 |
| Number of Network (RJ-45) Ports | 2 |
| Total Number of Ports | 2 |
| Form Factor | Plug-in Card |
| Height | 69 mm |
| Width | 16 mm |
| Depth | 134 mm |
