Product Overview

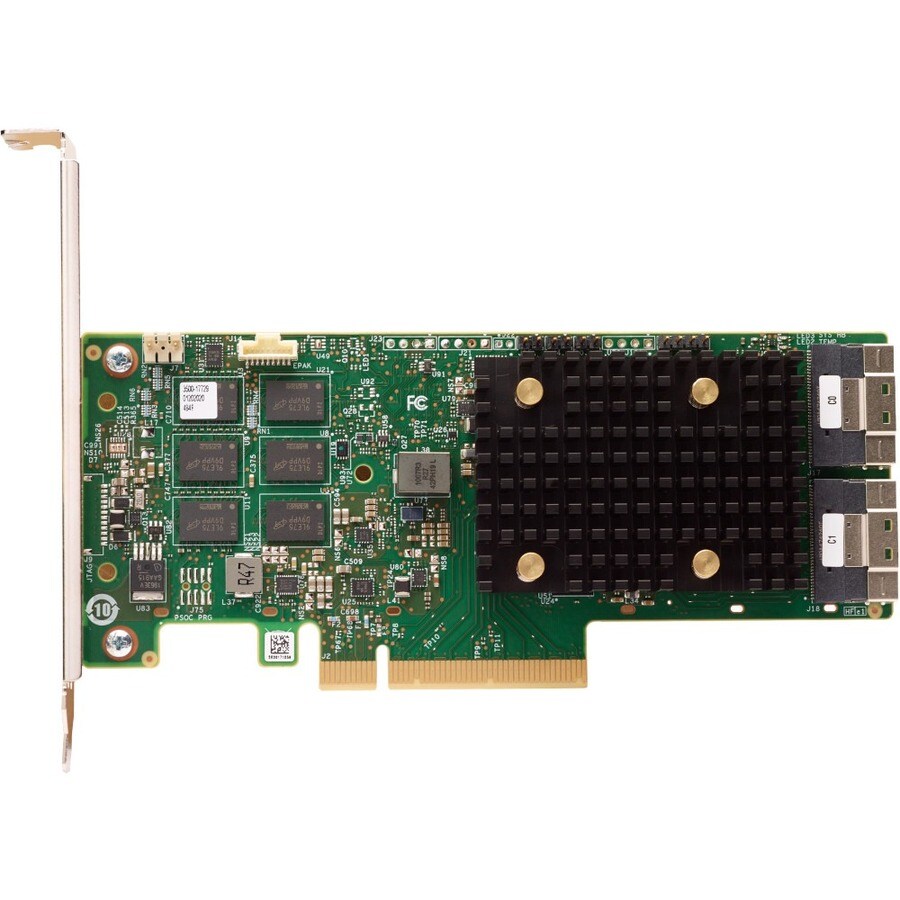

RAID 940-16I 8GB FLASH
The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
Technical Specifications
Memory
| Cache Memory | 8 GB |
Technical Information
| Host Interface | PCI Express 4.0 x8 |
| Device Supported | Server |
| RAID Levels | 60 |
| 6 | |
| 50 | |
| 5 | |
| 10 | |
| 1 | |
| 0 | |
| JBOD | |
| Controller Type | 12Gb/s SAS |
| Operating System Supported | SUSE Linux Enterprise Server 12 SP4 |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| VMware ESXi 6.7 U2 | |
| VMware ESXi 6.7 U3 | |
| VMware ESXi 7.0 U1 | |
| VMware ESXi 7.0 U2 | |
| VMware ESXi 7.0 U3 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Ubuntu 18.04 LTS | |
| Ubuntu 20.04 LTS | |
| VMware ESXi 6.7 | |
| VMware ESXi 6.7 U1 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| SUSE Linux Enterprise Server 12 SP3 | |
| RAID Supported | Yes |
| Data Backup Type | Flash Backed Cache |
Miscellaneous
| Platform Supported | PC |
Physical Characteristics
| Form Factor | Plug-in Card |
Interfaces/Ports
| Total Number of SAS Ports | 16 |
| Number of SAS Ports (Internal) | 16 |
| SAS Connector Details | Two x8 SFF-8654 |
General Information
| Product Type | SAS Controller |
| Manufacturer Part Number | 4Y37A09730 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | RAID 940-16i |
| Product Name | ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter |
| Brand Name | Lenovo |
