THINKSYSTEM 4350-8I SAS/SATA 12GB HBA
THINKSYSTEM 4350-8I SAS/SATA 12GB HBA
Product Overview
THINKSYSTEM 4350-8I SAS/SATA 12GB HBA

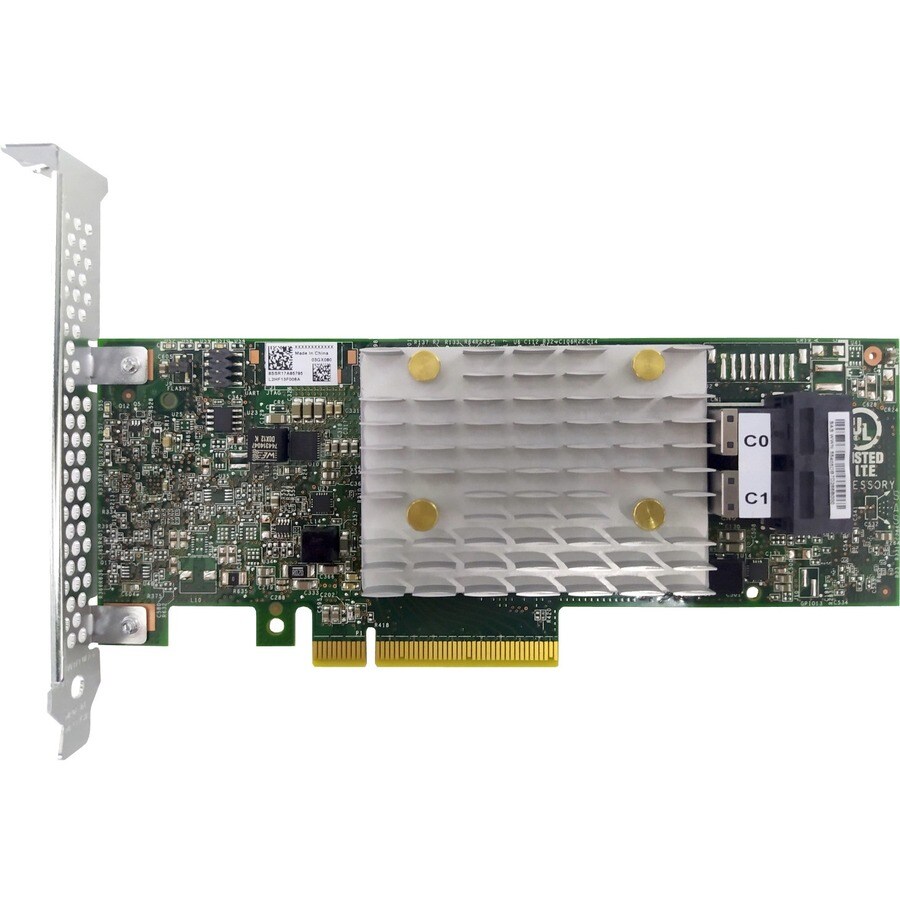

The Lenovo ThinkSystem 4350-8i and 4350-16i SAS/SATA 12Gb HBAs are high performance host bus adapters manufactured by Lenovo for internal storage connectivity in ThinkSystem servers. They integrate the latest SAS technology and offer eight or 16 lanes of 12 Gbps SAS. With a low-profile form-factor design, these adapters offers two or four x4 internal mini-SAS HD connectors.
Technical Specifications
Interfaces/Ports
| Total Number of SAS Ports | 8 |
| Number of SAS Ports (Internal) | 8 |
| SAS Connector Details | 2x Mini-SAS HD x4 (SFF-8643) |
Technical Information
| Host Interface | PCI Express 3.0 x8 |
| Device Supported | Server |
| RAID Levels | JBOD |
| Controller Type | 12Gb/s Fibre Channel |
| Operating System Supported | Windows Server 2016 |
| VMware ESXi 7.0 U3 | |
| VMware ESXi 7.0 U2 | |
| VMware ESXi 7.0 U1 | |
| VMware ESXi 6.7 U3 | |
| VMware ESXi 6.7 U2 | |
| Ubuntu 22.04 LTS | |
| Ubuntu 20.04 LTS | |
| Ubuntu 18.04.5 LTS | |
| Windows Server 2022 | |
| Windows Server 2019 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| SUSE Linux Enterprise Server 12 SP3 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.1 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 7.9 | |
| RAID Supported | No |
Miscellaneous
| Platform Supported | Linux |
| PC | |
| Environmentally Friendly | Yes |
Physical Characteristics
| Form Factor | Plug-in Card |
| Length | 167 mm |
| Height | 64 mm |
General Information
| Product Type | SAS Controller |
| Manufacturer Part Number | 4Y37A72480 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 4350-8i |
| Product Name | ThinkSystem 4350-8i SAS/SATA 12Gb HBA |
| Brand Name | Lenovo |
Price Trend
Current Price
AUD 490.00
