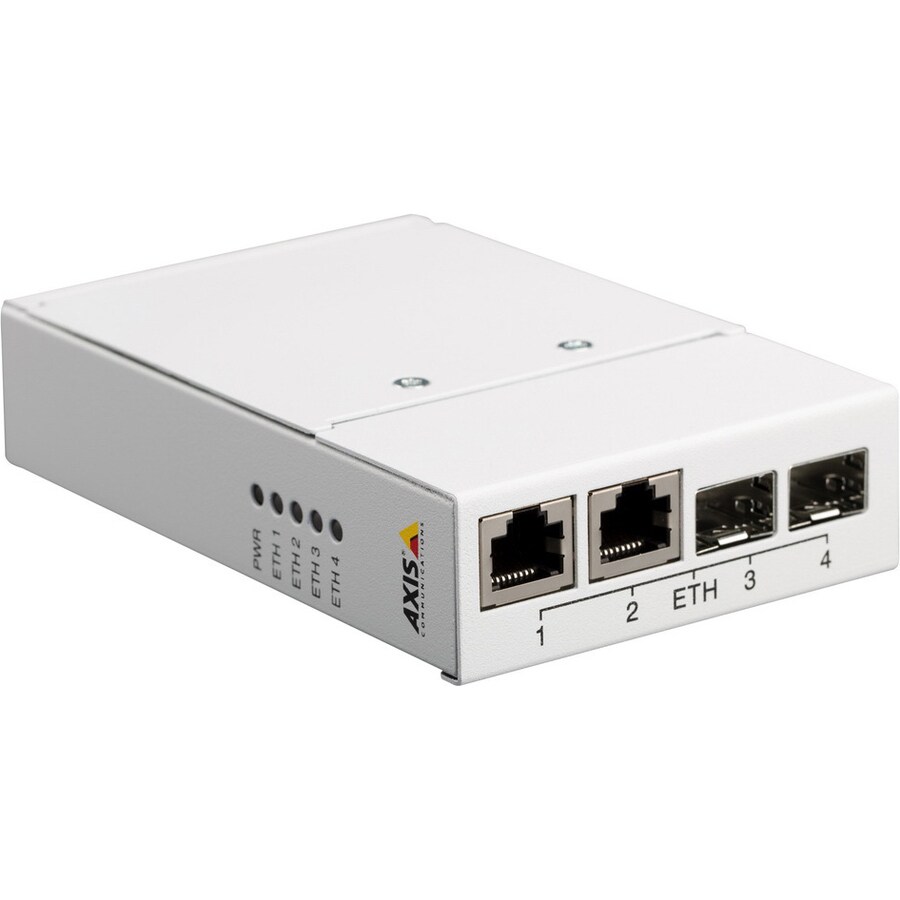

AXIS T8604 Media Converter Switch

AXIS T8604 Media Converter Switch

AXIS T8604 Media Converter Switch

Product Overview

AXIS T8604 Transceiver/Media Converter - 2 Port(s) - 2 x Network (RJ-45) - No - No - Twisted Pair - 10/100Base-TX - 2.0 x Expansion Slots - 2 SFP Slots - Rail-mountable

AXIS T8604 Media Converter Switch allows Axis video products to connect to the network using standard network or fiber optic cables that help lower the cost of installing the cameras over long distances.

Perfect for city surveillance, airports and other long distance installations, AXIS T8604 Media Converter Switch is a DIN-mounted device that can convert an Ethernet signal to be used over optical fiber cable. Fiber optic connections are typically used in surveillance installations where lightning strikes are a threat or great connection distances are required. Surveillance integrators in the field can also connect installation monitors and laptops to AXIS T8604 for camera maintenance and control.

Technical Specifications

Media & Performance
Media Type SupportedTwisted Pair
Power Description
Input Voltage12 V DC
I/O Expansions
Expansion Slot TypeSFP
Number of SFP Slots2
Network & Communication
Network Technology1000Base-X
10/100Base-TX
Miscellaneous
Package Contents
  • T8604 Media Converter Switch
  • Bracket Mount DIN Clip
  • Installation Guide
Certifications & Standards

    Compliance:

    • CE
    • EN 50022
    • IEC 60715
    • AS 2756

    Approvals:

    • EN 55022 Class A
    • EN 61000-3-2
    • EN 61000-3-3
    • EN 61000-6-1
    • EN 61000-6-2
    • EN 55024
    • FCC Part 15 Subpart B Class A
    • ICES-003 Class A
    • VCCI Class A
    • C-tick AS/NZS CISPR 22
    • KCC Class A
    • IEC/EN 60950-1
Environmentally FriendlyYes
General Information
Product TypeTransceiver/Media Converter
Manufacturer Part Number5027-041
Manufacturer Website Addresshttp://www.axis.com/au/en/
ManufacturerAxis Communications
Product ModelT8604
Product NameT8604 Media Converter Switch
Brand NameAXIS
Physical Characteristics
Weight (Approximate)284 g
Height30.5 mm
Width99.1 mm
Depth149.9 mm
Product ColorWhite
Color FamilyWhite
Interfaces/Ports
USBNo
DVINo
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Parallel PortNo
Management PortNo
Digital AudioNo
Digital Audio/VideoNo
Total Number of Ports2
