Product Overview

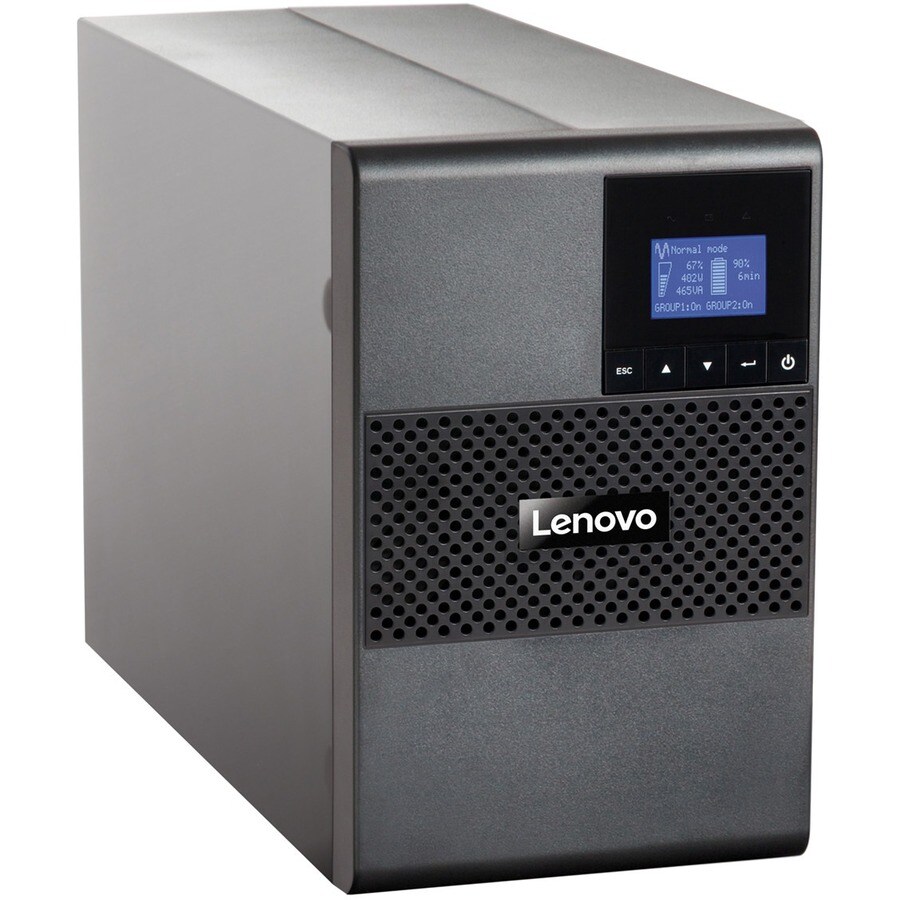

T1KVA TOWER UPS (100-125VAC)

The T1kVA and T1.5kVA Tower Uninterruptible Power Supply (UPS) offerings provide power protection with increased efficiency and simplified power management to safeguard the high-availability of Lenovo server environments. With efficiency ratings of up to 97%, these compact tower designs can help reduce energy usage without compromising performance or reliability.

Did you know?

T1kVA and T1.5kVA Tower UPS units feature Advanced Battery Management (ABM) technology that uses a unique three-stage charging technique that significantly extends battery service life and optimizes recharge time, compared to traditional charging.

T1kVA and T1.5kVA Tower UPS units can enhance system availability with individual receptacle groups or load segments that can be programmed and controlled, which allows mission-critical devices to be prioritized during shutdown to preserve battery run time if there is a prolonged power outage.

T1kVA and T1.5kVA Tower UPS units come standard with UPS Power Manager (UPM) power management software that integrates seamlessly with the major virtual platforms, which enables you to view and manage your entire power system from your current dashboard. It also triggers live migration during power outages and avoids data loss by gracefully shutting down virtual machines and hosts in a cluster if there is an extended power outage.

  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 5 minute at full load
  • 1 kVA load capacity - work without any interruption during power outages
  • Prevent critical data loss by staying powered during a blackout with up to 770 W load capacity

Technical Specifications

Controls/Indicators
Status Indicators
    LED Indicators:
    • Power On
    • On Battery
    • Alarm
Environmental Conditions
Maximum Operating Temperature35°C
Maximum Operating Elevation3 km
Interfaces/Ports
Network (RJ-45)Yes
Serial PortYes
USB (HID Compliant) PortYes
Miscellaneous
Package Contents
  • T1kVA Tower UPS
  • Serial cable: 1.2 m (4 ft)
  • USB Cable
  • Remote Emergency Power-off (REPO) Connector
  • Documentation package
  • Software CD, which contains UPM Software
  • 1.8 m NEMA 5-15P Line Cord
Environmentally FriendlyYes
Energy StarNo
Physical Characteristics
Weight (Approximate)11.50 kg
Height233 mm
Width150 mm
Depth345 mm
Power Description
Input Voltage120 V AC
Output Voltage125 V AC
100 V AC
120 V AC
Waveform TypeSine Wave
Input Voltage Range100 V AC - 125 V AC
Output Frequency60 Hz
Input Frequency60 Hz
Load Capacity (VA)1 kVA
Load Capacity (Watt)770 W
Technical Information
Application/UsageServer
Virtual Machine
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail8 x NEMA 5-15R
Battery Information
Battery ChemistryLead Acid
Hot SwappableYes
Battery Capacity9000 mAh
Backup/Run Time (Half Load)12 Minute
Backup/Run Time (Full Load)5 Minute
Battery CharacteristicsMaintenance-free, Leak-proof
General Information
Product TypeLine-interactive UPS
Manufacturer Part Number55951AX
Manufacturer Website Addresshttp://www3.lenovo.com/au/en
ManufacturerLenovo Group Limited
Product ModelT1kVA
Product NameT1kVA Tower UPS
Brand NameLenovo
