Product Overview
AXIS VB-H47 1 Megapixel Indoor Full HD Network Camera - Colour - Black - 1005.84 mm Night Vision - Smart H.265+, H.264, H.265, JPEG - 1920 x 1080 - 4.70 mm- 97 mm Varifocal Lens - 20x Optical - 60 fps - CMOS - Ceiling Mount

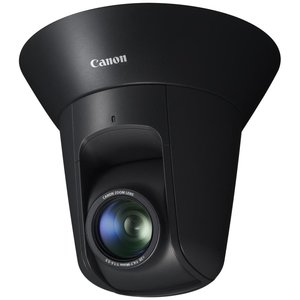

The Canon VB-H47 Full HD PTZ IP security camera combines a powerful 320x zoom with excellent low-light capability, WDR (Wide Dynamic Range) function and fast auto-focus. The product offers flexible installation options for indoor use.
New image sensor and video network engine
Canon's popular network cameras have further evolved with the latest specifications and performance, equipped with a newimage sensorand video network engine, while maintaining various functions, compactness, and ease of use.
H.264 and H.265 support
The camera delivers a full HD 60 fps video stream and can simultaneously provide five streams including two H.265 or H.264 streams.
High PTZ performance
Canon VB-H47 offers f fast, high-precision pan/tilt/zoom (PTZ) capability to programmed pre-set positions.
- Full HD 60 fps video stream and H.265 and H.264 support
- 20x optical with 16x digital zoom and fast autofocus
- Remarkable low-light performance with color at 0.02 lux and mono at 0.003 lux
- Excellent WDR performance
- Two color options: Titanium white and Black
Technical Specifications
| Network (RJ-45) | Yes |
| Storage Type | Memory Card |
| Longest Shutter Speed | 1/1 Second |
| Shortest Shutter Speed | 1/16000 Second |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | 50°C |
| Maximum Operating Humidity | 85% |
| Input Voltage | 240 V AC |
| 100 V AC | |
| 12 V DC |
| Night Vision | Yes |
| HD Recording | Yes |
| Night Vision Distance | 1005.84 mm |
| Package Contents |
|
| Features | Face Detection |
| Multi-view Stream | |
| Audio Compression | |
| Auto Gain Control | |
| Auto Image Stabilizer | |
| Day/Night | |
| Noise Reduction | |
| Motion Detection | |
| Password Protection | |
| Privacy Masking | |
| White Balance | |
| Wide Dynamic Range | |
| Panoramic Stream |
| Image Sensor Size | 1/2.8" |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 1 Megapixel |
| Field of View | Horizontal: 62.4° (W) - 3.3° (T) Vertical: 36.3° (W) - 1.9° (T) |
| Optical Zoom | 20x |
| Maximum Aperture | f/1.6 |
| Maximum Focal Length | 97 mm |
| Minimum Focal Length | 4.70 mm |
| Minimum Aperture | f/3.1 |
| Lens Included | Yes |
| Weight (Approximate) | 1.10 kg |
| Mount Type | Ceiling Mount |
| Diameter | 132 mm |
| Height | 155 mm |
| Product Color | Black |
| Color Family | Black |
| Video Formats | Smart H.265+ |
| JPEG | |
| H.264 | |
| H.265 | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Product Type | Network Camera |
| Manufacturer Part Number | 5715C002 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | VB-H47 |
| Product Name | Canon VB-H47 |
| Brand Name | AXIS |
