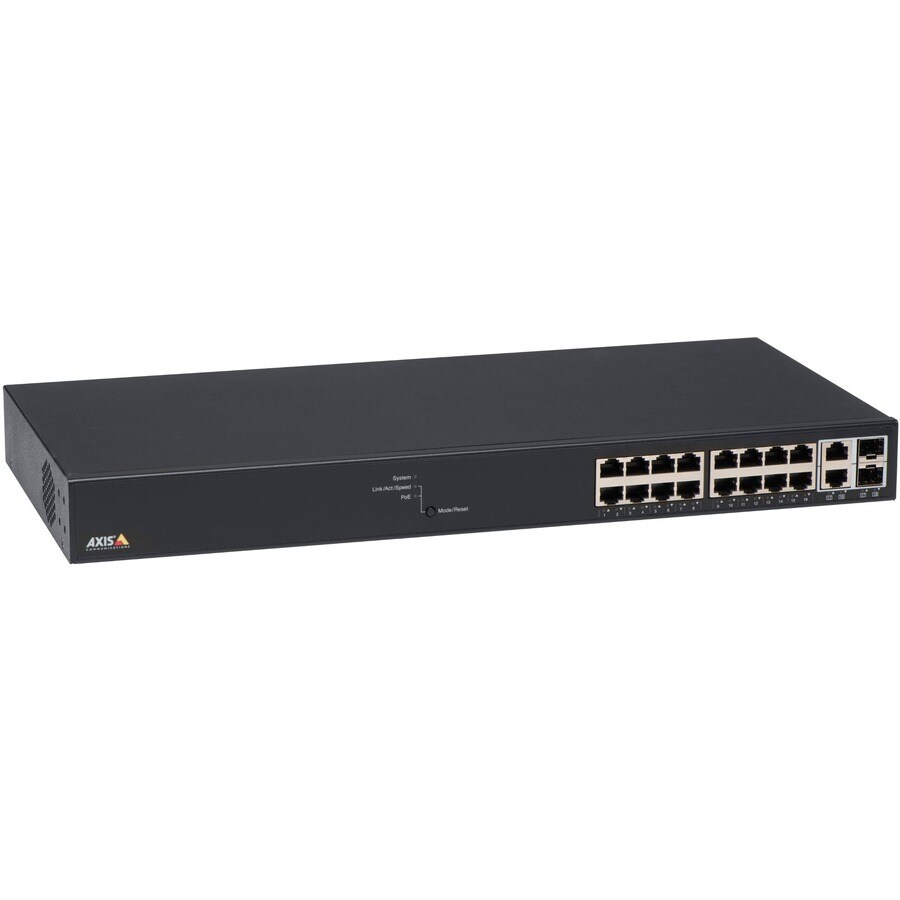

AXIS T8516 POE+ NETWORK SWITCH
AXIS T8516 POE+ NETWORK SWITCH
Product Overview
AXIS T8516 16 Ports Manageable Ethernet Switch - Gigabit Ethernet - 10/100/1000Base-TX - 2 Layer Supported - Modular - 2 SFP Slots - Twisted Pair, Optical Fiber - Desktop, Rack-mountable - 3 Year Limited Warranty
- Optimized for surveillance solutions
- Easy installation and configuration
- Unique web graphic user interface
AXIS T8516 PoE+ Network Switch is an easy-to-install network switch optimized for surveillance solutions, that comes with an unique web graphic user interface with topology for easy overview and management of all devices in the system.
Easy to install and configure
AXIS T8516 PoE+ Network Switch, just as Axis product portfolio, is easy to install by using standard Axis tools as AXIS IP utility and AXIS Device Manager. AXIS T8516 also comes with an individual password and easy to use setup wizard.
AXIS T8516 comes with a comprehensive set of configuration tools such as an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Security, and Spanning tree to further optimize the total solution.
Perfect match for Axis surveillance solutions
AXIS T8516 PoE+ Network Switch is made for the surveillance industry and a perfect complement to Axis recorders such as AXIS Camera Station S10 Series. This to simplify further setup and installation of the surveillance systems.
Total overview with unique web graphic user interface
The unique web graphic user interface offers a graphic topology for easy overview of all devices in the system. The graphic user interface provides information, status and notifications about connected devices. It allows for management of all connected devices, reboot of cameras in the system, monitoring of network traffic, cable diagnostics and much more.
- Gigabit Ethernet port for ultra-fast network speeds
- The desktop installation makes it ideal for deployments outside the wiring closet
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 16 ports
- Quickly and easily set up a wired network with 16 networking ports
Technical Specifications
| Manageable | Yes |
| Layer Supported | 2 |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | Yes |
| Total Number of Expansion Slots | 2.0 |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 5801-696 |
| Manufacturer Website Address | http://www.axis.com/au/en/ |
| Manufacturer | Axis Communications |
| Product Model | T8516 |
| Product Name | T8516 PoE+ Network Switch |
| Brand Name | AXIS |
| Modular | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 16 |
| Port/Expansion Slot Details | 16 x Gigabit Ethernet Network |
| 2 x Gigabit Ethernet TP/SFP Combo |
| Network Technology | 1000Base-X |
| 10/100/1000Base-TX | |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
| Weight (Approximate) | 3 kg |
| Form Factor | Rack-mountable |
| Desktop | |
| Height | 44 mm |
| Width | 442 mm |
| Depth | 211 mm |
