Eaton 5P 1550VA / 1100W Tower UPS with L
Eaton 5P 1550VA / 1100W Tower UPS with L
Product Overview

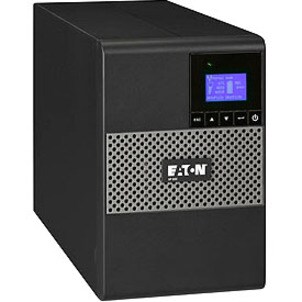

Eaton 5P1550AU Line-interactive UPS - 1.55 kVA/1.10 kW - Tower - 4 Minute Stand-by - 160 V AC, 294 V AC Input - 240 V AC Output - 3 x IEC 60320 C13 - Serial Port - USB
The Eaton 5P is a Line interactive, density optimised power protection for IT & Telecom environment. Wide power management capabilities offering point-to-point and network supervision- Experience higher efficiency with lower energy cost
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
- 1.55 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 1.10 kW load capacity
Technical Specifications
Miscellaneous
| Certifications & Standards |
|
Battery Information
| Backup/Run Time (Half Load) | 13 Minute |
| Backup/Run Time (Full Load) | 4 Minute |
Environmental Conditions
| Maximum Operating Temperature | 40°C |
| Sound Emission (A-Weighted) | 40 dB(A) |
Interfaces/Ports
| USB | Yes |
| Serial Port | Yes |
| Total Number of Expansion Slots | 1 |
Physical Characteristics
| Weight (Approximate) | 15.60 kg |
| Height | 230 mm |
| Width | 150 mm |
| Depth | 445 mm |
Technical Information
| Dataline Protection | USB |
| RS-232 | |
| Plug/Connector Type | Aust. 10A |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 3 x IEC 60320 C13 |
General Information
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | 5P1550AU |
| Manufacturer Website Address | http://www.eatoncorp.com.au |
| Manufacturer | Eaton Corporation |
| Product Model | 5P1550AU |
| Product Name | 5P1550AU 1550VA Tower UPS |
| Product Series | 5P |
| Brand Name | Eaton |
Power Description
| Input Voltage | 160 V AC |
| 294 V AC | |
| Output Voltage | 240 V AC |
| Input Current | 10 A |
| Waveform Type | Pure Sine Wave |
| Output Current | 10 A |
| Load Capacity (VA) | 1.55 kVA |
| Load Capacity (Watt) | 1.10 kW |
