IBM 6160-H8S
IBM 6160-H8S
Product Overview

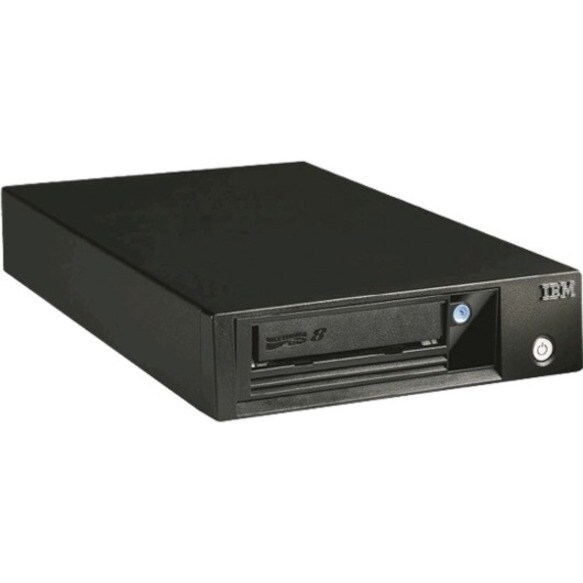

IBM 6160-H8S
The family of IBM LTO Ultrium Tape Drives for Lenovo (Machine Type 6160) is external, stand-alone or rack-mountable tape drives that contain an LTO Ultrium 8, Ultrium 7, Ultrium 6, or Ultrium 5 Tape Drive that is designed for the heavy demands of backup tape storage. The drives deliver IBM tape reliability and performance at a cost-effective price.
TS2280 Model H8S incorporates the LTO Ultrium 8 Half-High SAS Tape Drive. TS2270 Model H7S incorporates the LTO Ultrium 7 Half-High SAS Tape Drive. TS2260 Model H6S incorporates the LTO Ultrium 6 Half-High SAS Tape Drive. TS2250 Model H5S incorporates the LTO Ultrium 5 Half-High SAS Tape Drive. These tape drives use a dual-port 6 Gbps SAS interface for connection to a wide range of servers.
The LTO Ultrium Tape Drives from Lenovo are excellent choices if you use tape drives that require larger-capacity or higher-performance tape backup. The TS2280, TS2270, TS2260, and TS2250 Tape Drives are an excellent choice for tape backup solutions for Lenovo servers.
Technical Specifications
| Host Interface | 6Gb/s SAS |
| Maximum Native Data Transfer Rate | 300 MB/s |
| Maximum Compressed Data Transfer Rate | 750 MB/s |
| Recording Method | Linear Serpentine |
| Drive Type | LTO-8 |
| Encryption | Yes |
| Native Storage Capacity | 12 TB |
| Compressed Storage Capacity | 30 TB |
| Weight (Approximate) | 4.30 kg |
| Form Factor | External |
| Rack Height | 2U |
| Height | 58 mm |
| Width | 213 mm |
| Depth | 332 mm |
| Drive Height | 1/2H |
| Product Type | Tape Drive |
| Manufacturer Part Number | 6160S8E |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Model | TS2280 |
| Product Name | IBM TS2280 Tape Drive Model H8S |
| Brand Name | Lenovo |
