THINKSYSTEM NE1032 SWITCH (R-F)
THINKSYSTEM NE1032 SWITCH (R-F)
Product Overview
THINKSYSTEM NE1032 SWITCH (R-F)

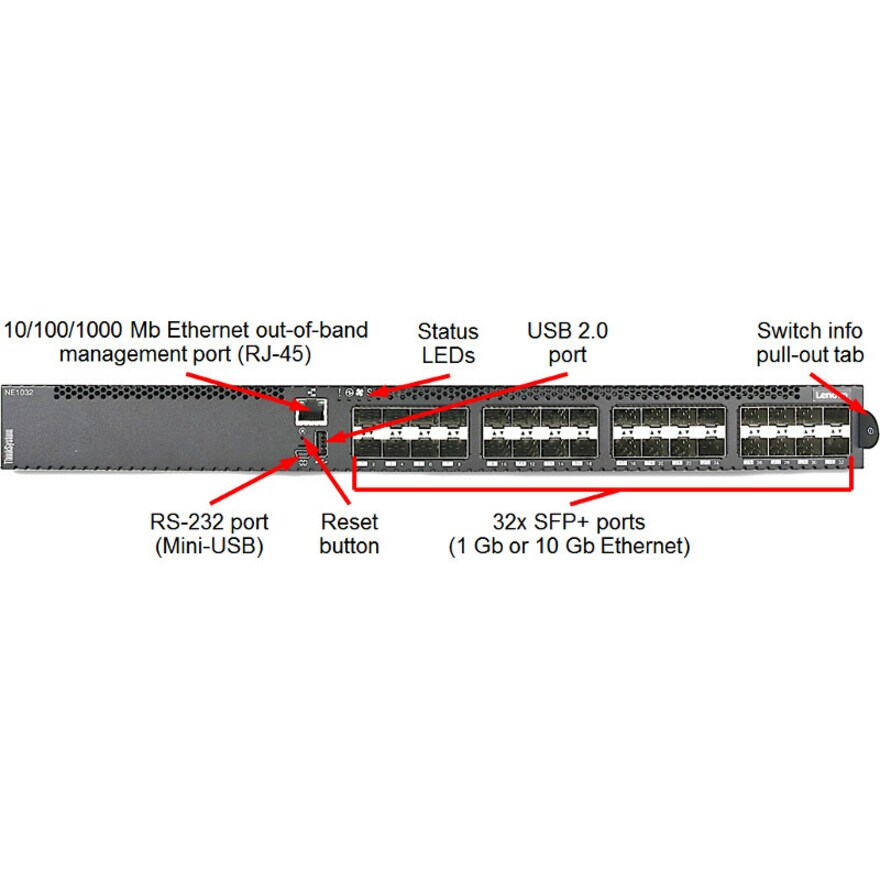

The Lenovo ThinkSystem NE1032 RackSwitch is a 1U rack-mount 10 Gb Ethernet switch that delivers lossless, low-latency performance with feature-rich design that supports virtualization, Converged Enhanced Ethernet (CEE), high availability, and enterprise class Layer 2 and Layer 3 functionality. The switch delivers line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data.The NE1032 RackSwitch has 32x SFP+ ports that support 1 GbE and 10 GbE optical transceivers, active optical cables (AOCs), and direct attach copper (DAC) cables. The switch helps consolidate server and storage networks into a single fabric, and it is an ideal choice for virtualization, cloud, and enterprise workload solutions.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 3 |
Miscellaneous
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
I/O Expansions
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 32 |
| Total Number of Expansion Slots | 32.0 |
Physical Characteristics
| Weight (Approximate) | 10.70 kg |
| Form Factor | Rack-mountable |
| Height | 44 mm |
| Width | 441 mm |
| Depth | 487 mm |
| Compatible Rack Unit | 1U |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 32 x 10 Gigabit Ethernet Expansion Slot |
Media & Performance
| Network Technology | 10GBase-X |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
General Information
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | 7159A1X |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7159-HD1 |
| Product Name | ThinkSystem NE1032 RackSwitch (Rear to Front) |
| Brand Name | Lenovo |
Price Trend
Current Price
AUD 7,384.94
