LENOVO RACKSWITCH G7028 (REAR TO FRONT)
LENOVO RACKSWITCH G7028 (REAR TO FRONT)
Product Overview
LENOVO RACKSWITCH G7028 (REAR TO FRONT)

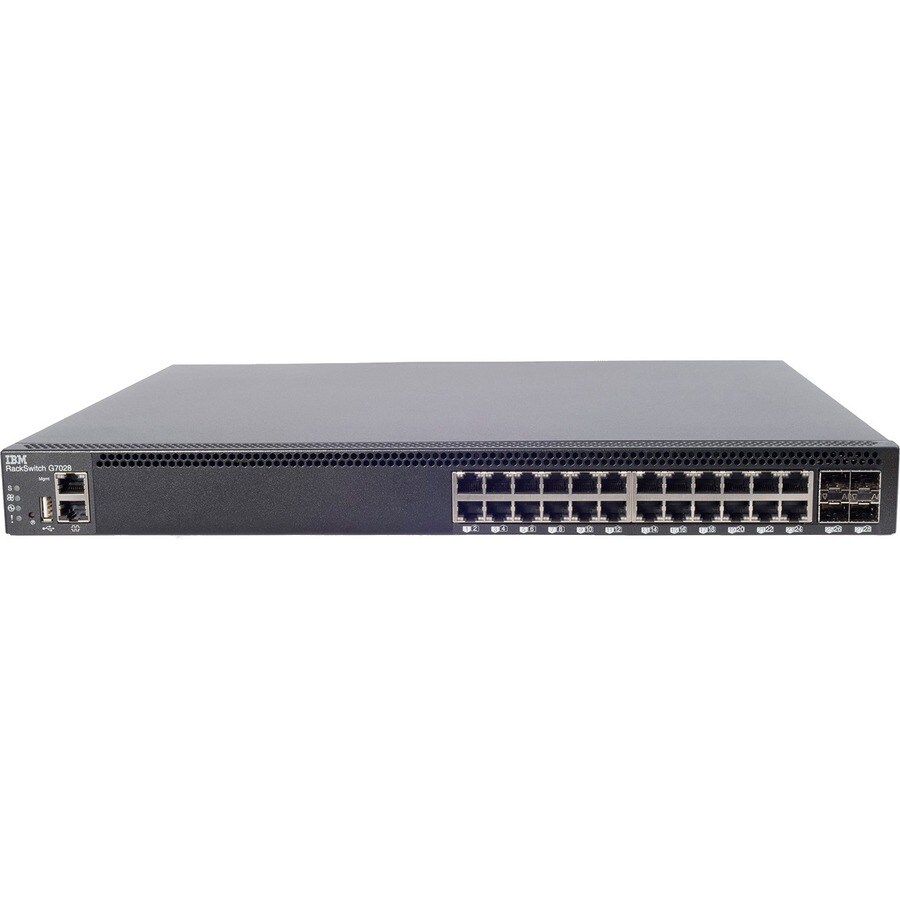

The Lenovo RackSwitch™ G7028 is an inexpensive, entry-level Layer 2 1/10 Gb Ethernet switch that is designed for the data center. Data center customers continue to deploy applications by using 1 GbE networking switches while 10 GbE continues to grow for customer solutions that require greater I/O bandwidth. The RackSwitch G7028 is an ideal solution for data center customers who need an economical 1 Gb and 10 Gb connectivity solution.
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Rack mounting enables you to organize wires & secure cables for professional installation
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
- Quickly and easily set up a wired network with 24 networking ports
Technical Specifications
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 2 |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
I/O Expansions
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4.0 |
Interfaces/Ports
| Modular | No |
| Uplink Port | Yes |
| Stack Port | No |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 24 x Gigabit Ethernet Network |
Physical Characteristics
| Weight (Approximate) | 5.30 kg |
| Form Factor | Rack-mountable |
| Height | 44 mm |
| Width | 440 mm |
| Depth | 382 mm |
| Compatible Rack Unit | 1U |
General Information
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 7159BAX |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Model | G7028 |
| Product Name | RackSwitch G7028 Ethernet Switch |
| Product Line | RackSwitch |
| Brand Name | Lenovo |
Media & Performance
| Network Technology | 10/100/1000Base-T |
| 1000Base-LX | |
| 1000Base-SX | |
| 1000Base-T | |
| 10GBase-LR | |
| 10GBase-SR | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Media Type Supported | Twisted Pair |
| Optical Fiber |
