Product Overview

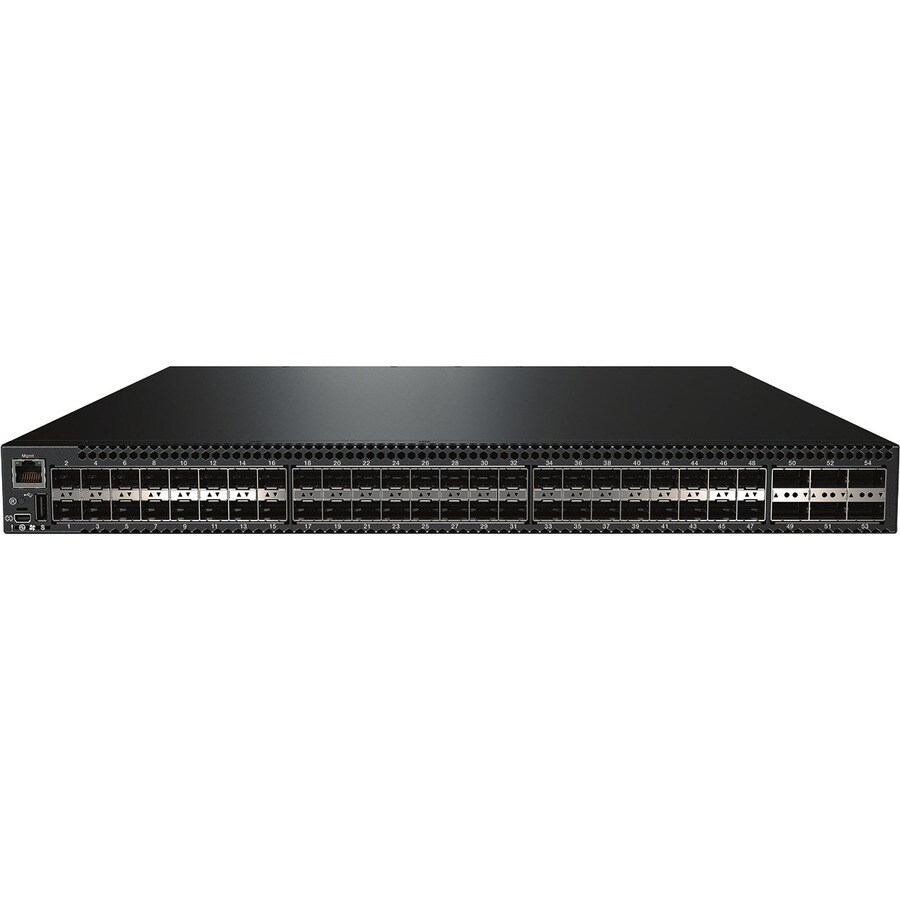

LENOVO RACKSWITCH G8272 (REAR TO FRONT)
The Lenovo RackSwitch™ G8272 that uses 10Gb SFP+ and 40Gb QSFP+ Ethernet technology is specifically designed for the data center. It is ideal for today's big data, cloud, and optimized workload solutions. It is an enterprise class Layer 2 and Layer 3 full featured switch that delivers line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data. Large data center-grade buffers help keep traffic moving, while the hot-swap redundant power supplies and fans (along with numerous high-availability features) help provide high availability for business sensitive traffic.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
| Manageable | Yes |
| Layer Supported | 3 |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | SFP+ |
| QSFP+ | |
| Number of SFP+ Slots | 48 |
| Total Number of Expansion Slots | 54.0 |
| Modular | No |
| Uplink Port | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 48 x 10 Gigabit Ethernet Expansion Slot |
| 6 x 40 Gigabit Ethernet Expansion Slot |
| Weight (Approximate) | 6.10 kg |
| Form Factor | Rack-mountable |
| Height | 44 mm |
| Width | 487 mm |
| Depth | 440 mm |
| Compatible Rack Unit | 1U |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | 7159CRW |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Model | G8272 |
| Product Name | RackSwitch G8272 Layer 3 Switch |
| Product Line | RackSwitch |
| Brand Name | Lenovo |
| Network Technology | 1000Base-T |
| 10GBase-LR | |
| 10GBase-ER | |
| 1000Base-LX | |
| 1000Base-SX | |
| 10GBase-SR | |
| 40GBase-X | |
| Ethernet Technology | 40 Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
