THINKSYSTEM NE2572 SWITCH (F-R)
THINKSYSTEM NE2572 SWITCH (F-R)
Product Overview

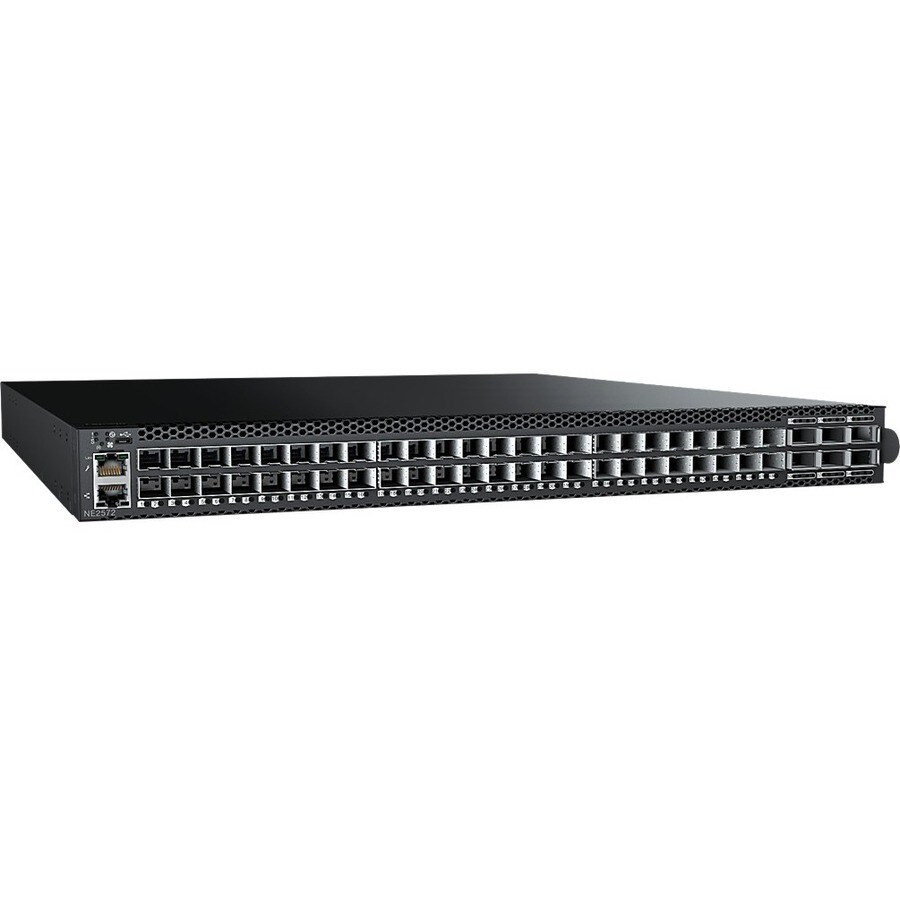

THINKSYSTEM NE2572 SWITCH (F-R)
The Lenovo ThinkSystem NE2572 RackSwitch is designed for the data center and provides 10 Gb/25 Gb Ethernet connectivity with 40 Gb/100 Gb Ethernet upstream links. It is ideal for big data, cloud, and enterprise workload solutions. It is an enterprise class Layer 2 and Layer 3 full featured switch that delivers line-rate, high-bandwidth switching, filtering, and traffic queuing without delaying data. Large data center-grade buffers help keep traffic moving, while the hot-swap redundant power supplies and fans (along with numerous high-availability software features) help provide high availability for business sensitive traffic.The NE2572 RackSwitch has 48x SFP28/SFP+ ports that support 10 GbE SFP+ and 25 GbE SFP28 optical transceivers, active optical cables (AOCs), and direct attach copper (DAC) cables. The switch also offers 6x QSFP28/QSFP+ ports that support 40 GbE QSFP+ and 100 GbE QSFP28 optical transceivers, active optical cables (AOCs), and direct attach copper (DAC) cables. The QSFP28/QSFP+ ports can also be split out into four 10 GbE (for 40 GbE QSFP+) or 25 GbE (for 100 GbE QSFP28) connections by using breakout cables.
The NE2572 RackSwitch is ideal for latency sensitive applications, such as high-performance computing clusters and financial applications.
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Management capability provides control over setup and configuration of your network
- Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
Management & Protocols
| Manageable | Yes |
Network & Communication
| Layer Supported | 3 |
Power Description
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
Interfaces/Ports
| Modular | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 6 x 100 Gigabit Ethernet Expansion Slot |
| 48 x 25 Gigabit Ethernet Expansion Slot |
Media & Performance
| Network Technology | 25GBase-X |
| 100GBase-X | |
| Ethernet Technology | 25 Gigabit Ethernet |
| 100 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
I/O Expansions
| Expansion Slot Type | SFP28 |
| SFP+ | |
| QSFP28 | |
| QSFP+ | |
| Number of SFP+ Slots | 48 |
| Total Number of Expansion Slots | 54.0 |
Physical Characteristics
| Weight (Approximate) | 11.40 kg |
| Form Factor | Rack-mountable |
| Height | 44 mm |
| Width | 441 mm |
| Depth | 487 mm |
| Compatible Rack Unit | 1U |
General Information
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | 7159E2X |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Model | NE2572 |
| Product Name | ThinkSystem NE2572 RackSwitch (Front to Rear) |
| Brand Name | Lenovo |
Price Trend
Current Price
AUD 13,485.39
