THINKSYSTEM SR630 V3 SILVER 4410Y 12C 16
THINKSYSTEM SR630 V3 SILVER 4410Y 12C 16
Product Overview

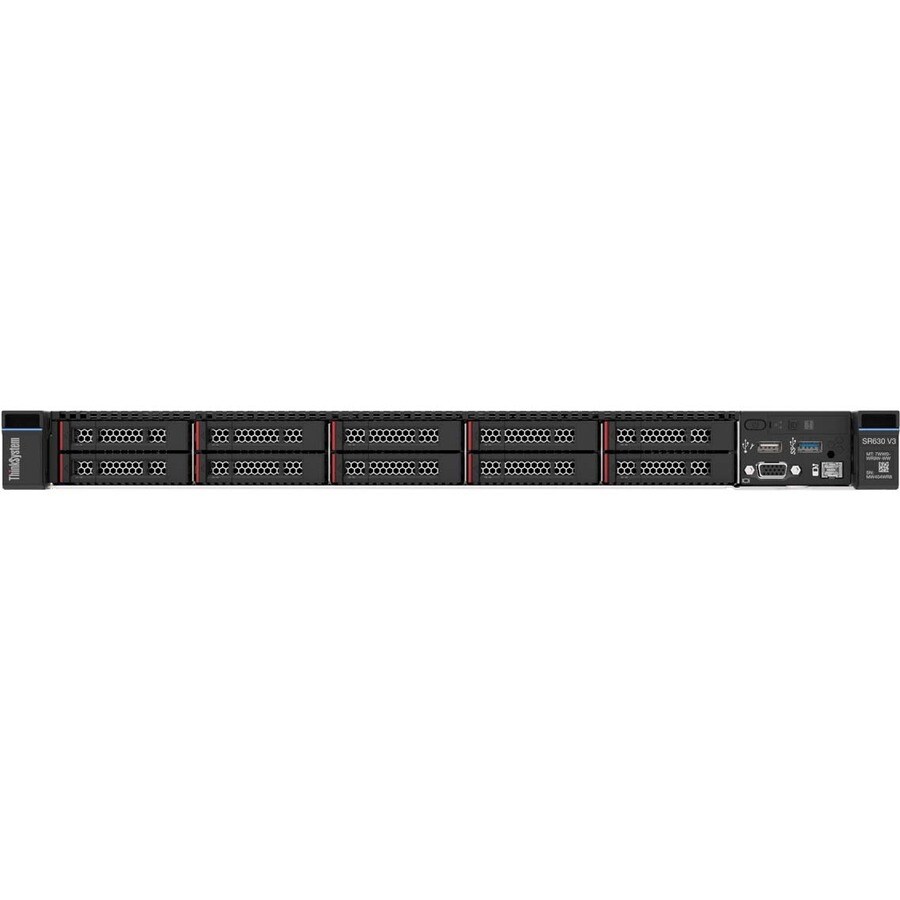

THINKSYSTEM SR630 V3 SILVER 4410Y 12C 16GB 1Rx8 9350-8I 2GB 750W1/2 3YR XCC Standard
The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 6, 10, 50, 60)
- 750 W power supply unit (PSU) fulfils your system's power requirements
- 16 GB powerful memory for any computational task
Technical Specifications
| Graphics Memory Capacity | 16 MB |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | 9350-8i |
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 2.0 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | 2x LP Gen4 |
| Weight (Approximate) | 20.20 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 439.4 mm |
| Depth | 772.2 mm |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of VGA Ports | 2 |
| Remote Management Controller | XClarity Controller (XCC) Standard |
| Error Checking | ECC |
| Maximum Memory Supported | 8 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | No |
| Total Number of Memory Slots | 32.0 |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| Product Type | Server |
| Manufacturer Part Number | 7D73A01RAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D73A01RAU |
| Product Name | ThinkSystem SR630 V3 7D73A01RAU Server |
| Product Line | ThinkSystem |
| Product Series | SR630 V3 |
| Brand Name | Lenovo |
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 8.7 |
| Windows Server 2022 | |
| Windows Server 2019 | |
| Ubuntu 22.04 LTS | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Red Hat Enterprise Linux 9.1 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 9.0 |
| Cache | 30 MB |
| Processor Speed | 2 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4410Y |
| Processor Core | Dodeca-core (12 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
