THINKSYSTEM SR630 V3 - 3YR WARRANTY
THINKSYSTEM SR630 V3 - 3YR WARRANTY
Product Overview

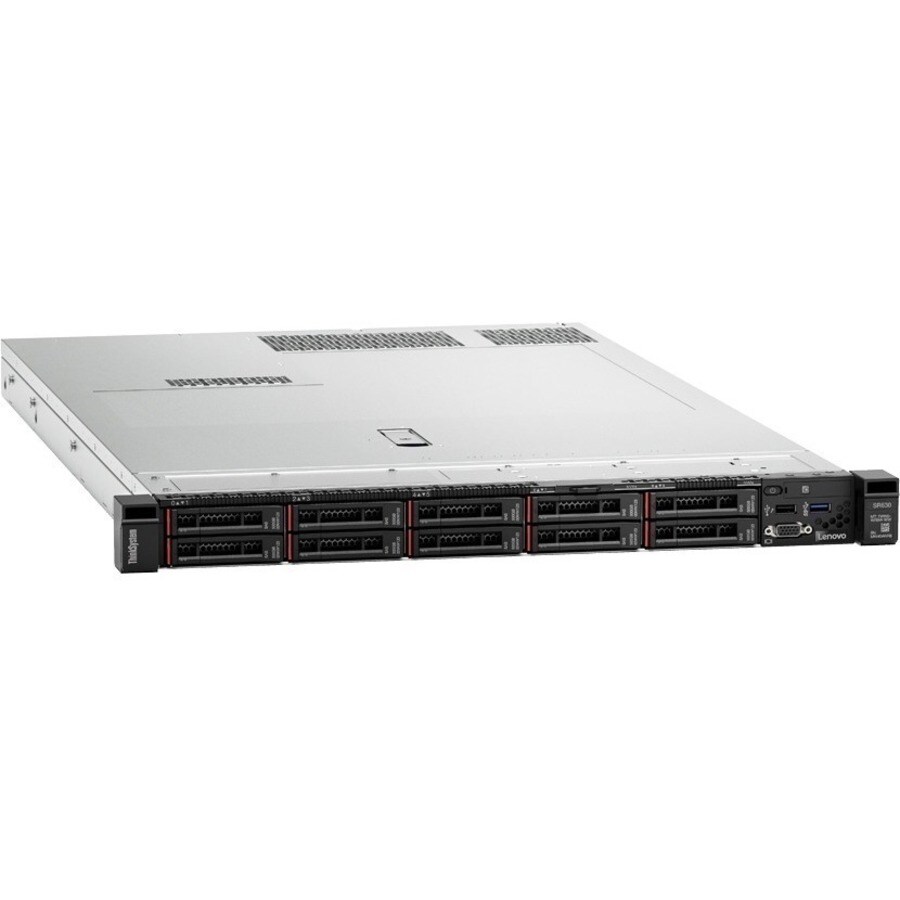

ThinkSystem SR630 V3 1x Intel Xeon Silver 4509Y 8C 125W 2.6GHz 1x16GB 2Rx8 ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Adapter 1x750W XCC2 Std 3-year warranty
The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 750 W power supply unit (PSU) for your system's power requirements
- 750 W power supply unit (PSU) fulfils your system's power requirements
- 16 GB memory offers effective multitasking
- 16 GB powerful memory for any computational task
- With 16 GB memory, you can multitask between applications smoothly
Technical Specifications
| Graphics Memory Capacity | 16 MB |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | 9350-8i |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 2.0 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | 2x LP Gen4 |
| Weight (Approximate) | 20.80 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 439.4 mm |
| Depth | 772.2 mm |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 2 |
| Remote Management Controller | XClarity Controller (XCC) Standard |
| Error Checking | ECC |
| Maximum Memory Supported | 8 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | No |
| Total Number of Memory Slots | 32.0 |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) | |
| China Environmental Labeling Program (CELP) | |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| Product Type | Server |
| Manufacturer Part Number | 7D73A040AU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D73A040AU |
| Product Name | ThinkSystem SR630 V3 7D73A040AU Server |
| Product Line | ThinkSystem |
| Product Series | SR630 V3 |
| Brand Name | Lenovo |
| Cache | 22.50 MB |
| Processor Speed | 2.60 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4509Y |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
| Operating System Supported | Red Hat Enterprise Linux 9.3 |
| SUSE Linux Enterprise Server 15 SP4 | |
| SUSE Linux Enterprise Server 15 SP5 | |
| Ubuntu 22.04 LTS x64 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 8.7 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 8.9 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 9.1 | |
| Red Hat Enterprise Linux 9.2 | |
| Windows Server 2019 | |
| Red Hat Enterprise Linux 8.8 |
