THINKSYSTEM SR650 V3 SILVER 4410Y 12C 16
THINKSYSTEM SR650 V3 SILVER 4410Y 12C 16
Product Overview
THINKSYSTEM SR650 V3 SILVER 4410Y 12C 16GB 1Rx8 9350-8I 2GB 750W1/2 3YR

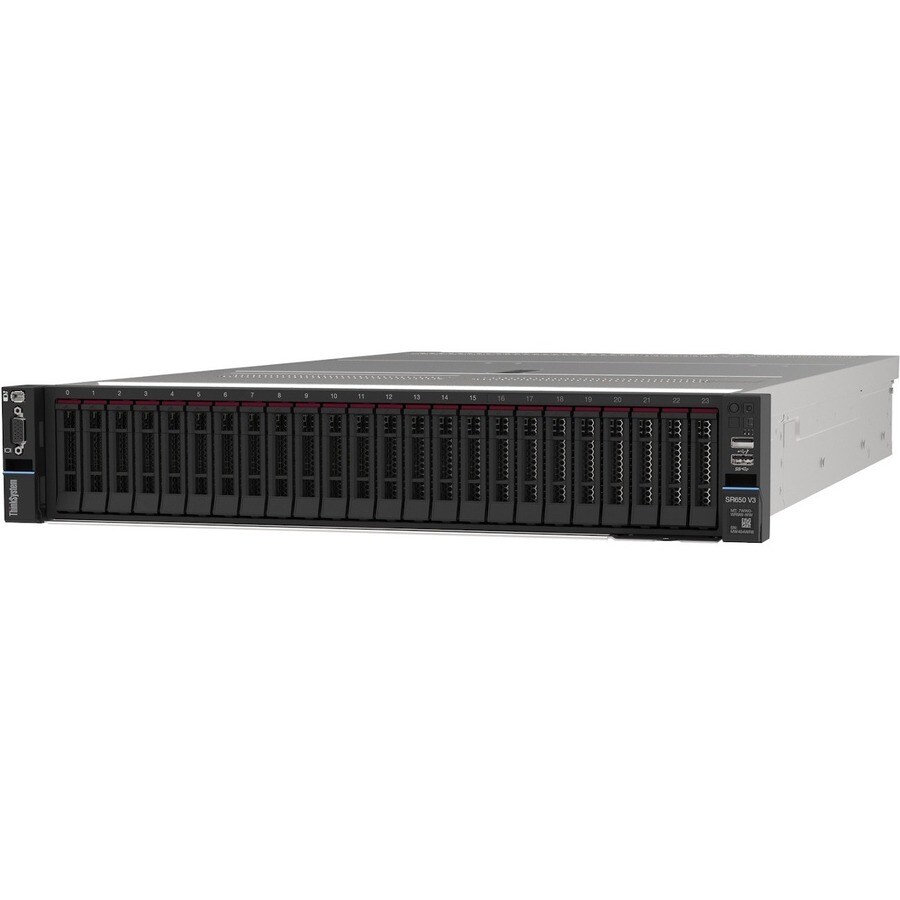

The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 750 W power supply unit (PSU) included
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
Display & Graphics
| Graphics Memory Capacity | 16 MB |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Warranty
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty (varies by geography), 9 x 5 next business day. Optional service upgrades are available. |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
Storage
| Optical Drive Type | No |
| Number of Hard Drives | No |
Controllers
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | 9350-16i |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
I/O Expansions
| Number of Total Expansion Bays | 12 |
| "Number of 3.5"" Bays" | 12 |
| Total Number of Expansion Slots | 3.0 |
| Hot Swappable Bays | Yes |
| Number of LFF Bays | 12 |
| PCI Express Details | 3 (x16, x8, x8) Gen4 |
Physical Characteristics
| Weight (Approximate) | 38.80 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 764.5 mm |
Interfaces/Ports
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 2 |
| Remote Management Controller | XClarity Controller (XCC) Platinum |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7D76A01VAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D76A01VAU |
| Product Name | ThinkSystem SR650 7D76A01VAU Server |
| Product Line | ThinkSystem |
| Product Series | SR650 V3 |
| Brand Name | Lenovo |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 8 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | No |
| Memory Clock Speed | 4.40 GHz |
| Total Number of Memory Slots | 32.0 |
Processor
| Cache | 30 MB |
| Processor Speed | 2 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4410Y |
| Processor Core | Dodeca-core (12 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
Operating System
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 9.0 |
| Red Hat Enterprise Linux 9.1 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Ubuntu 22.04 LTS | |
| Red Hat Enterprise Linux 8.6 | |
| Windows 11 Pro | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 8.7 | |
| Windows 10 Pro |
