Product Overview

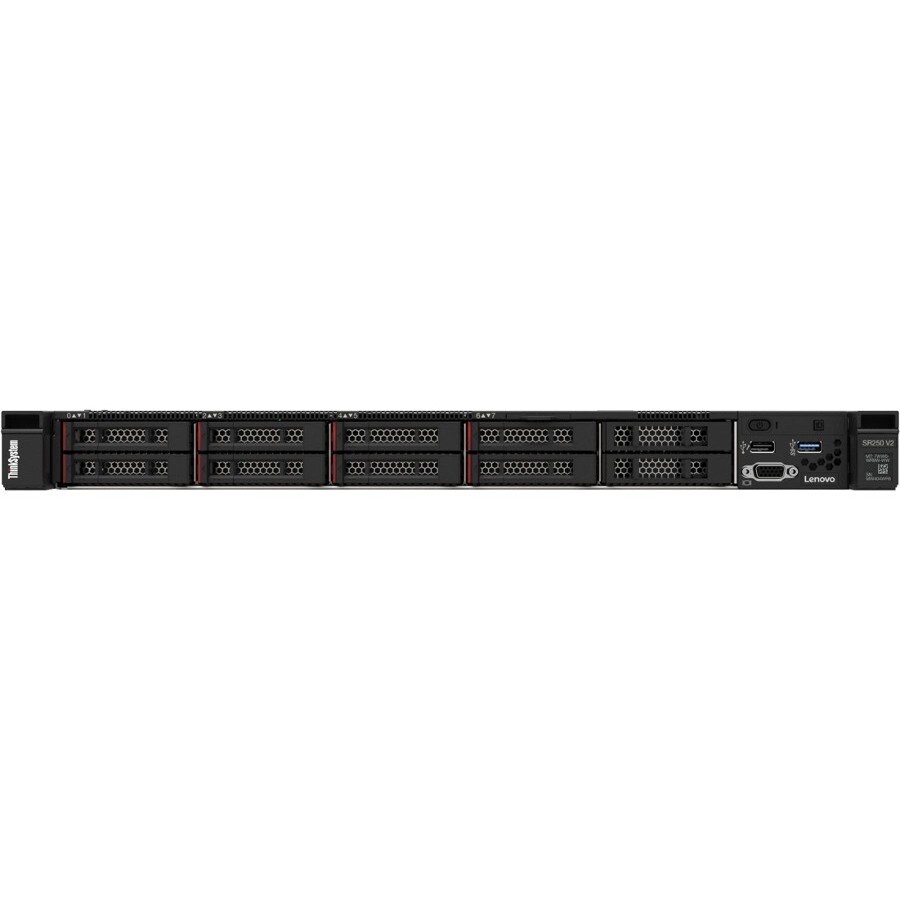

ThinkSystem SR250 V2 1xIntel Xeon E-2356G 6C 3.2GHz 80W 1x16GB 2Rx8 SW RD 1x450W XCC Enterprise 3-year warranty
The Lenovo ThinkSystem SR250 V2 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem SR250 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR250 V2 and consider its use in IT solutions.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.20 GHz processor
- RAID provides data reliability, fault tolerance and improves overall performance
- 450 W power supply unit (PSU) fulfils your system's power requirements
- With 16 GB memory, you can multitask between applications smoothly
Technical Specifications
| Ethernet Technology | Gigabit Ethernet |
| Chipset Manufacturer | Intel |
| Chipset Model | C256 |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Weight (Approximate) | 12.30 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43 mm |
| Width | 435 mm |
| Depth | 545 mm |
| Error Checking | ECC |
| Maximum Memory Supported | 64 GB |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 4.0 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Enterprise (XCC) |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| ENERGY STAR 3.0 | |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 450 W |
| Cache | 12 MB |
| Processor Speed | 3.20 GHz |
| Processor Type | Xeon |
| Processor Model | E-2356G |
| Processor Core | Hexa-core (6 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Product Type | Server |
| Manufacturer Part Number | 7D7QA01GAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D7QA01GAU |
| Product Name | ThinkSystem SR250 V2 7D7QA01GAU Server |
| Product Line | ThinkSystem |
| Product Series | SR250 V2 |
| Brand Name | Lenovo |
| Riser Card | ThinkSystem SR250 V2 x8/x8 PCIe Gen4 Riser |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 3.0 |
| Hot Swappable Bays | Yes |
| PCI Express x4 (Gen 3.x) Slots | 1 |
| Number of SFF Bays | 8 |
| PCI Express Details | 2 x PCIe G4 x8 |
| 1 x PCIe G3 x4 |
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 9.1 |
| SUSE Linux Enterprise Server 15 SP3 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Red Hat Enterprise Linux 8.7 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 9.0 | |
| Windows Server 2019 |
