THINKSYSTEM SR250 V2 - 3-YEAR WARRANTY
THINKSYSTEM SR250 V2 - 3-YEAR WARRANTY
Product Overview

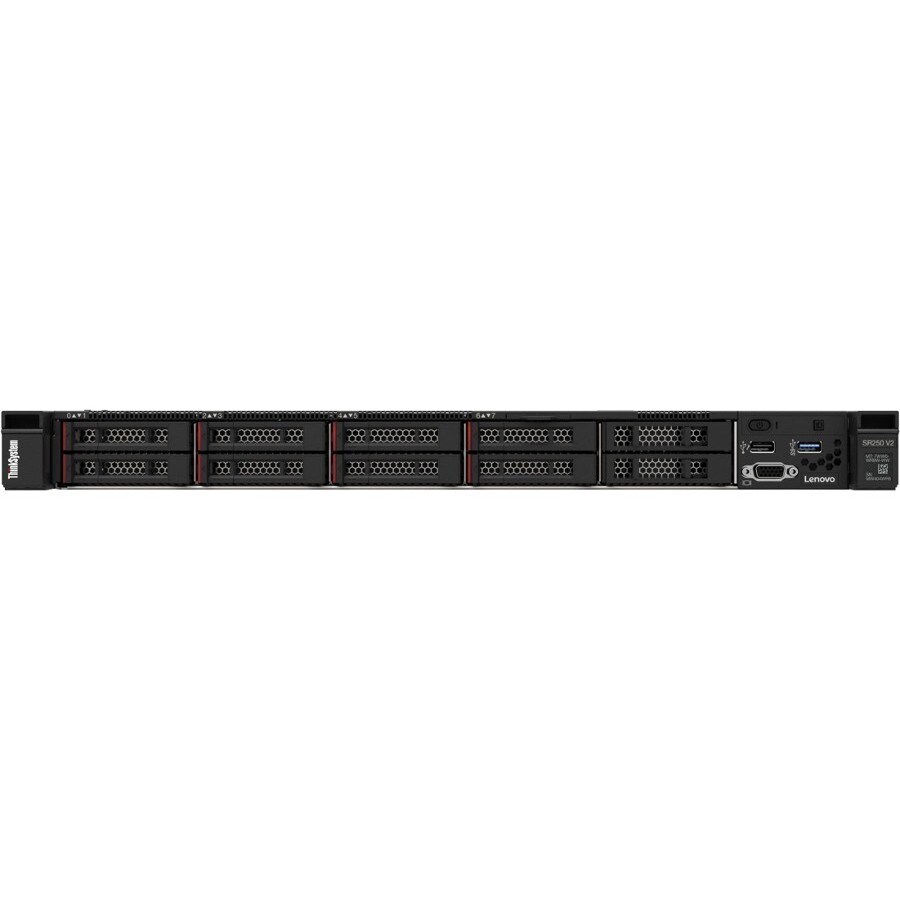

ThinkSystem SR250 V2 1xIntel Xeon E-2324G 4C 3.1GHz 65W 1x16GB 2Rx8 SW RD 4x 3.5-in HS 1x450W XCC Advanced 3-year warranty - LFF
The Lenovo ThinkSystem SR250 V2 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.10 GHz processor
- 1 x 450 W power supply unit (PSU) for your system's power requirements
- 450 W power supply unit (PSU) fulfils your system's power requirements
- 450 W power supply unit (PSU) included
- With 16 GB memory, improve system performance to execute complex applications
- With 16 GB memory, you can multitask between applications smoothly
Technical Specifications
Controllers
| Controller Type | Serial ATA |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Warranty
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C256 |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
Physical Characteristics
| Weight (Approximate) | 12.30 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43 mm |
| Width | 435 mm |
| Depth | 545 mm |
I/O Expansions
| Riser Card | ThinkSystem SR250 V2 x8/x8 PCIe Gen4 Riser |
| Number of Total Expansion Bays | 4 |
| "Number of 3.5"" Bays" | 4 |
| Total Number of Expansion Slots | 3.0 |
| Hot Swappable Bays | Yes |
| PCI Express x8 (Gen 3.x) Slots | 1 |
| Number of LFF Bays | 4 |
| PCI Express Details | x8 LP, x8 FH, x8 Int |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 2 |
| Remote Management Controller | XCC Advanced |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 4.0 |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 450 W |
Processor
| Cache | 8 MB |
| Processor Speed | 3.10 GHz |
| Processor Type | Xeon |
| Processor Model | E-2324G |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7D7QA03DAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D7QA03DAU |
| Product Name | ThinkSystem SR250 V2 7D7QA03DAU Server |
| Product Line | ThinkSystem |
| Product Series | SR250 V2 |
| Brand Name | Lenovo |
Operating System
| Operating System Supported | Red Hat Enterprise Linux 8.4 |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 8.8 | |
| Red Hat Enterprise Linux 9.0 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 9.2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Windows Server 2019 | |
| Red Hat Enterprise Linux 9.1 |
