THINKSYSTEM ST250 V2 E-2356G16GB 2RX8 SW
THINKSYSTEM ST250 V2 E-2356G16GB 2RX8 SW
Product Overview

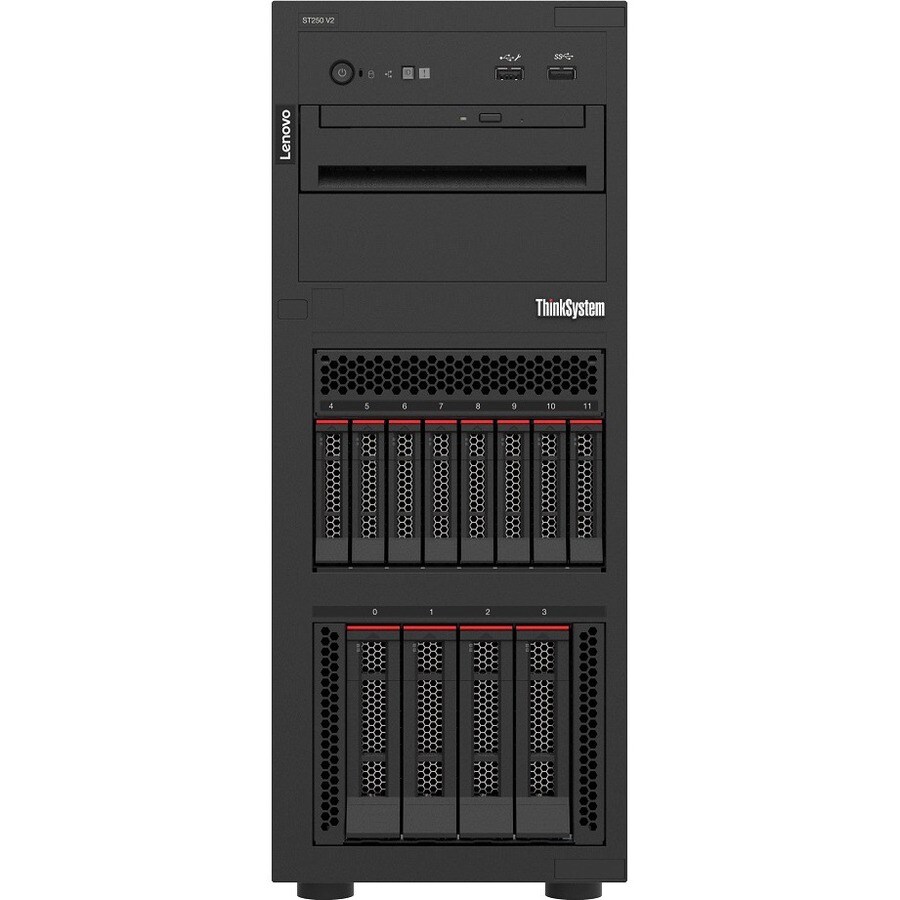

ThinkSystem ST250 V2 1xIntel Xeon E-2356G 6C 3.2GHz 80W 1x16GB 2Rx8 SW RD 1x550W XCC Enterprise
The Lenovo ThinkSystem ST250 V2 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem ST250 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST250 V2 and consider its use in IT solutions.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.20 GHz processor
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 10, JBOD)
- 1 x 550 W power supply unit (PSU) included
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
| Ethernet Technology | Gigabit Ethernet |
| Chipset Manufacturer | Intel |
| Chipset Model | C256 |
| RAID Levels | 0, 1, 5, 10, JBOD |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Operating System Supported | Windows Server 2019 |
| Red Hat Enterprise Linux 8.4 | |
| SuSE Linux Enterprise Server 15 | |
| Windows Server 2022 | |
| SUSE Linux Enterprise Server 15 SP3 |
| Weight (Approximate) | 23.60 kg |
| Form Factor | Tower |
| Height | 444.5 mm |
| Width | 175.3 mm |
| Depth | 579.1 mm |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 550 W |
| "Number of External 5.25"" Bays" | 1 |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 9 |
| Total Number of Expansion Slots | 4.0 |
| Hot Swappable Bays | Yes |
| PCI Express x4 (Gen 3.x) Slots | 3 |
| Number of SFF Bays | 8 |
| PCI Express Details | 4x PCIe slots (x4, x16, x4, x4) |
| Error Checking | ECC |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 4.0 |
| Cache | 12 MB |
| Processor Speed | 3.20 GHz |
| Processor Type | Xeon |
| Processor Model | E-2356G |
| Processor Core | Hexa-core (6 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Product Type | Server |
| Manufacturer Part Number | 7D8FA00RAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D8FA00RAU |
| Product Name | ThinkSystem ST250 V2 7D8FA00RAU Server |
| Product Line | ThinkSystem |
| Product Series | ST250 V2 |
| Brand Name | Lenovo |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Number of DisplayPorts | 2 |
| Remote Management Controller | XClarity Controller Enterprise |
