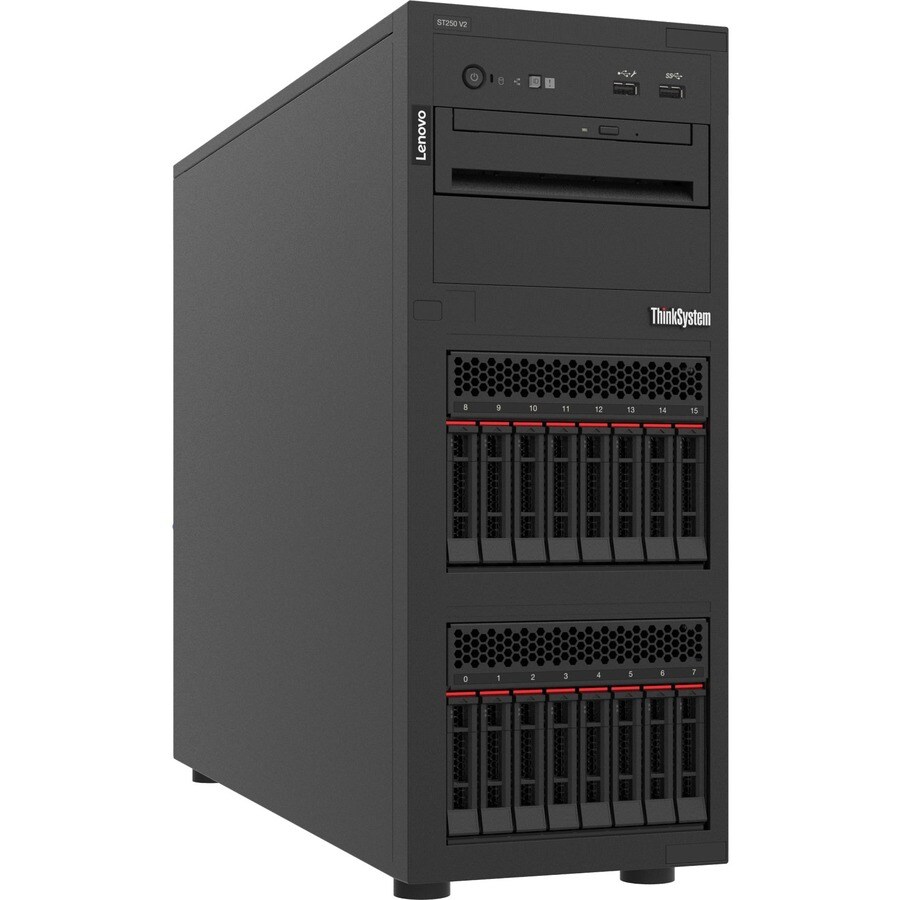

THINKSYSTEM ST250 V2 E-2324G 8GB 1RX8 SW
THINKSYSTEM ST250 V2 E-2324G 8GB 1RX8 SW
Product Overview
ThinkSystem ST250 V2 1xIntel Xeon E-2324G 4C 3.1GHz 65W 1x8GB 1Rx8 SW RD 4x 3.5-in HS 1x300W 3-year warranty - LFF
The Lenovo ThinkSystem ST250 V2 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.10 GHz processor
- RAID provides data reliability, fault tolerance and improves overall performance
- 300 W power supply unit (PSU) fulfils your system's power requirements
- 8 GB memory offers effective multitasking
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Storage
| Optical Drive Type | DVD-Writer |
Warranty
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C256 |
Controllers
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
Physical Characteristics
| Weight (Approximate) | 23.60 kg |
| Form Factor | Tower |
| Height | 444.5 mm |
| Width | 175.3 mm |
| Depth | 579.1 mm |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 300 W |
I/O Expansions
| "Number of External 5.25"" Bays" | 1 |
| Number of Total Expansion Bays | 5 |
| "Number of 3.5"" Bays" | 4 |
| Total Number of Expansion Slots | 4.0 |
| Hot Swappable Bays | Yes |
| PCI Express x4 (Gen 3.x) Slots | 3 |
| Number of LFF Bays | 4 |
| PCI Express Details | 4x PCIe slots (x4, x16, x4, x4) |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller Enterprise |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Standard Memory | 8 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 4.0 |
Operating System
| Operating System Supported | Windows Server 2022 |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 9.1 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Windows Server 2019 |
Processor
| Cache | 8 MB |
| Processor Speed | 3.10 GHz |
| Processor Type | Xeon |
| Processor Model | E-2324G |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7D8FA00YAP |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D8FA00YAP |
| Product Name | ThinkSystem ST250 V2 7D8FA00YAP Server |
| Product Line | ThinkSystem |
| Product Series | ST250 V2 |
| Brand Name | Lenovo |
