Product Overview
THINKSYSTEM SR665 V3 AMD9124 16C 16GB 1Rx8 9350-8I 2GB 750W1/2 3YR

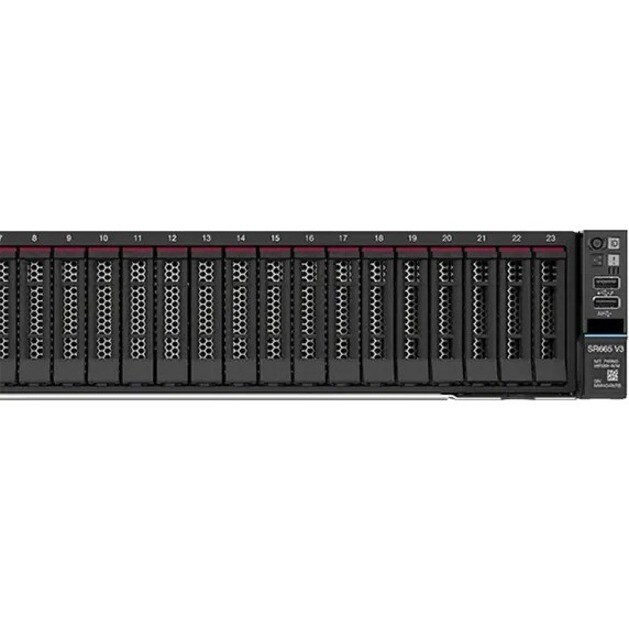

The Lenovo ThinkSystem SR665 V3 is a 2-socket 2U server that features the AMD EPYC 9004 "Genoa" family of processors. With up to 96 cores per processor and support for the new PCIe 5.0 standard for I/O, the SR665 V3 offers the ultimate in two-socket server performance in a 2U form factor.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 750 W power supply unit (PSU) for your system's power requirements
- 16 GB powerful memory for any computational task
Technical Specifications
Chipset
| Chipset Manufacturer | AMD |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Storage
| Optical Drive Type | No |
Display & Graphics
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2600 |
| Graphics Memory Capacity | 16 MB |
Controllers
| Controller Type | 12Gb/s SAS |
| Serial ATA | |
| RAID Supported | Yes |
| Controller Model | 9350-8i 2GB |
Miscellaneous
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
Physical Characteristics
| Weight (Approximate) | 38.80 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 764.5 mm |
Processor
| Cache | 64 MB |
| Processor Speed | 3 GHz |
| Processor Type | EPYC |
| Processor Model | 9124 |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Manufacturer | AMD |
| Number of Processors Supported | 2 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7D9AA01FAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D9AA01FAU |
| Product Name | ThinkSystem SR665 V3 7D9AA01FAU Server |
| Product Line | ThinkSystem |
| Product Series | SR665 V3 |
| Brand Name | Lenovo |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.1 Type-A Ports | 4 |
| Remote Management Controller | XClarity Controller 2 |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 6 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 24.0 |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Operating System
| Operating System Supported | Red Hat Enterprise Linux 8.6 |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 9.1 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Windows Server 2022 | |
| Ubuntu 22.04 LTS | |
| Windows 10 Pro x64 | |
| Windows 11 Pro x64 | |
| Windows Server 2019 | |
| Ubuntu 20.04 LTS |
Price Trend
Current Price
AUD 11,060.00
