THINKSYSTEM SR645 V3 AMD9124 16C 16GB 53
THINKSYSTEM SR645 V3 AMD9124 16C 16GB 53
Product Overview
THINKSYSTEM SR645 V3 AMD9124 16C 16GB 1Rx8 5350-8I 2GB 750W1/2 3YR XCC Standard

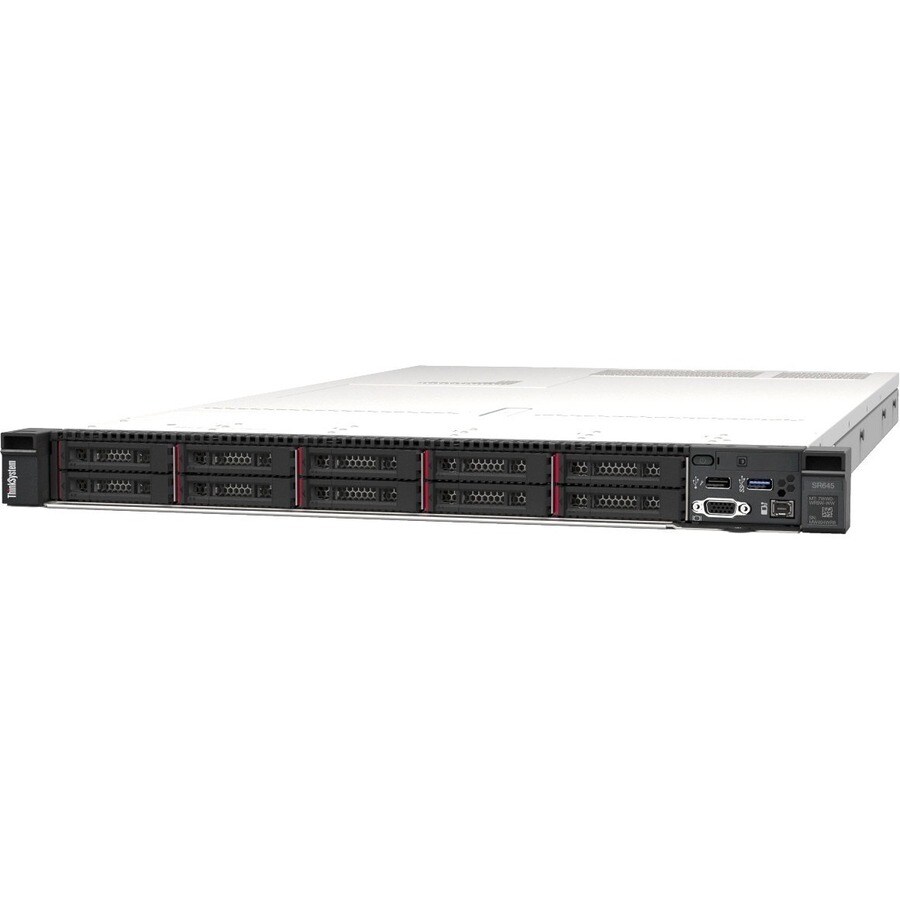

The Lenovo ThinkSystem SR645 V3 is a dense, high performance, 2-socket 1U rack server. It is suitable for small businesses to large enterprises, and especially cloud service providers. The server features the AMD EPYC 9004 "Genoa" family of processors and support for the new PCIe 5.0 standard for I/O. It is designed to handle a wide range of workloads such as cloud computing, virtualization, VDI, enterprise applications, and database management.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 750 W power supply unit (PSU) included
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
Chipset
| Chipset Manufacturer | AMD |
Display & Graphics
| Graphics Memory Capacity | 16 MB |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Controllers
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | 5350-8i |
I/O Expansions
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 3.0 |
| Number of SFF Bays | 8 |
| PCI Express Details | Up to 3x PCIe slots (2x PCIe 5.0, 1x PCIe 4.0) |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
Physical Characteristics
| Weight (Approximate) | 20.20 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 439.4 mm |
| Depth | 772.2 mm |
Interfaces/Ports
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller XCC |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 6 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 24.0 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7D9CA01JAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D9CA01JAU |
| Product Name | ThinkSystem SR645 V3 7D9CA01JAU Server |
| Product Line | ThinkSystem |
| Product Series | SR645 |
| Brand Name | Lenovo |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Processor
| Cache | 64 MB |
| Processor Speed | 3 GHz |
| Processor Type | EPYC |
| Processor Model | 9124 |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Manufacturer | AMD |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
Operating System
| Operating System Supported | Windows 10 Pro x64 |
| Windows Server 2022 | |
| Windows 11 Pro x64 | |
| Windows Server 2019 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 9.1 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Ubuntu 22.04 LTS |
