THINKSYSTEM SR645 V3 AMD9224 24C 32GB 93
THINKSYSTEM SR645 V3 AMD9224 24C 32GB 93
Product Overview
THINKSYSTEM SR645 V3 AMD9224 24C 32GB 1Rx8 9350-8I 2GB 750W1/2 3YR XCC Standard

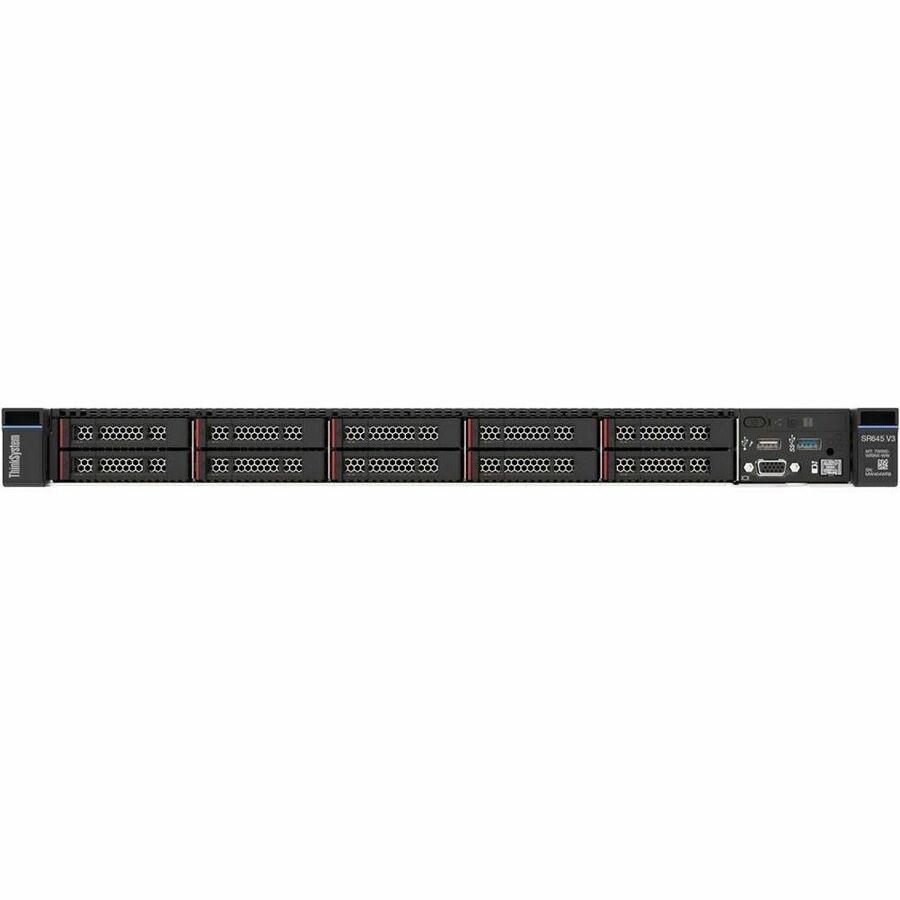

The Lenovo ThinkSystem SR645 V3 is a dense, high performance, 2-socket 1U rack server. It is suitable for small businesses to large enterprises, and especially cloud service providers. The server features the AMD EPYC 9004 "Genoa" family of processors and support for the new PCIe 5.0 standard for I/O. It is designed to handle a wide range of workloads such as cloud computing, virtualization, VDI, enterprise applications, and database management.
The server offers a broad selection of drive and slot configurations and offers high performance features. Outstanding reliability, availability, and serviceability (RAS) and high-efficiency design can improve your business environment and can help save operational costs.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 750 W power supply unit (PSU) for your system's power requirements
- With 32 GB memory, improve system performance to execute complex applications
Technical Specifications
| Chipset Manufacturer | AMD |
| Ethernet Technology | Gigabit Ethernet |
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | 9350-8i |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2600 |
| Graphics Memory Capacity | 16 MB |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 2.0 |
| Number of SFF Bays | 8 |
| PCI Express Details | 2x LP Gen5 |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Weight (Approximate) | 20.20 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 439.4 mm |
| Depth | 772.2 mm |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 2 |
| Remote Management Controller | XClarity Controller XCC2 Platinum |
| Error Checking | ECC |
| Maximum Memory Supported | 6 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 24.0 |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| Product Type | Server |
| Manufacturer Part Number | 7D9CA01LAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D9CA01LAU |
| Product Name | ThinkSystem SR645 V3 7D9CA01LAU Server |
| Product Line | ThinkSystem |
| Product Series | SR645 V3 |
| Brand Name | Lenovo |
| Cache | 64 MB |
| Processor Speed | 2.50 GHz |
| Processor Type | EPYC |
| Processor Model | 9224 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Manufacturer | AMD |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
| Operating System Supported | Red Hat Enterprise Linux 8.6 |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 9.0 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Windows 11 Pro x64 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Ubuntu 20.04 LTS x64 | |
| Ubuntu 22.04 LTS | |
| Ubuntu 22.04 LTS x64 | |
| Windows 10 Pro x64 | |
| Red Hat Enterprise Linux 9.1 |
