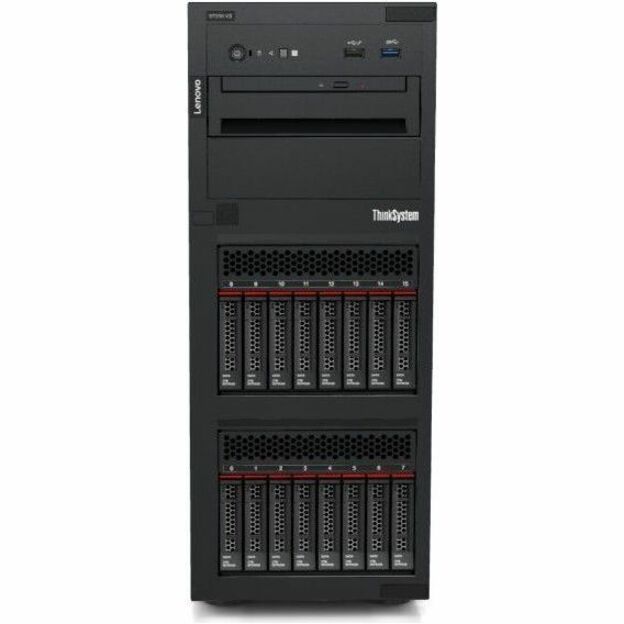

LENOVO ThinkSystem ST250 V3, 1x Intel Xeon E-2456 6C 3.2GHz 80W, SFF, 16GB DDR5, SW RD, 1x 800W, XClarity Controller2
LENOVO ThinkSystem ST250 V3, 1x Intel Xeon E-2456 6C 3.2GHz 80W, SFF, 16GB DDR5, SW RD, 1x 800W, XClarity Controller2
Product Overview
ThinkSystem ST250 V3 1x Intel Xeon E-2456 6C 80W 3.3GHz 1x16GB 2Rx8 SW RD 1x8000W XCC2 Std 3-year warranty
The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- Gigabit Ethernet port for ultra-fast network speeds
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 3.30 GHz processor
- 1 x 800 W power supply unit (PSU) for your system's power requirements
- 1 x 800 W power supply unit (PSU) included
- 800 W power supply unit (PSU) fulfils your system's power requirements
- With 16 GB memory, improve system performance to execute complex applications
- With 16 GB memory, you can multitask between applications smoothly
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Warranty
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
Controllers
| Controller Type | Serial ATA/600 |
| Controller Model | Intel VROC |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Physical Characteristics
| Weight (Approximate) | 15.81 kg |
| Form Factor | Tower |
| Height | 444.5 mm |
| Width | 175.3 mm |
| Depth | 579.1 mm |
I/O Expansions
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 4.0 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | 4x PCIe slots (x4, x16, x4, x4) |
Operating System
| Operating System Supported | Red Hat Enterprise Linux 8.8 |
| Red Hat Enterprise Linux 8.9 | |
| Red Hat Enterprise Linux 9.2 | |
| Windows Server 2022 | |
| SUSE Linux Enterprise Server 15 SP5 | |
| Ubuntu 22.04 LTS x64 | |
| Red Hat Enterprise Linux 9.3 |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 128 GB |
| Signal Processing | Unregistered (Unbuffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 4.0 |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
Processor
| Cache | 12 MB |
| Processor Speed | 3.30 GHz |
| Processor Type | Xeon |
| Processor Model | E-2456 |
| Processor Core | Hexa-core (6 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7DCEA01AAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7DCEA01AAU |
| Product Name | ThinkSystem ST250 V3 7DCEA01AAU Server |
| Product Line | ThinkSystem |
| Product Series | ST250 V3 |
| Brand Name | Lenovo |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| China Environmental Labeling Program (CELP) | |
| GREENGUARD | |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 4.0 |
| China Energy Conservation Program (CECP) | |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Price Trend
Current Price
AUD 3,855.00
