Product Overview

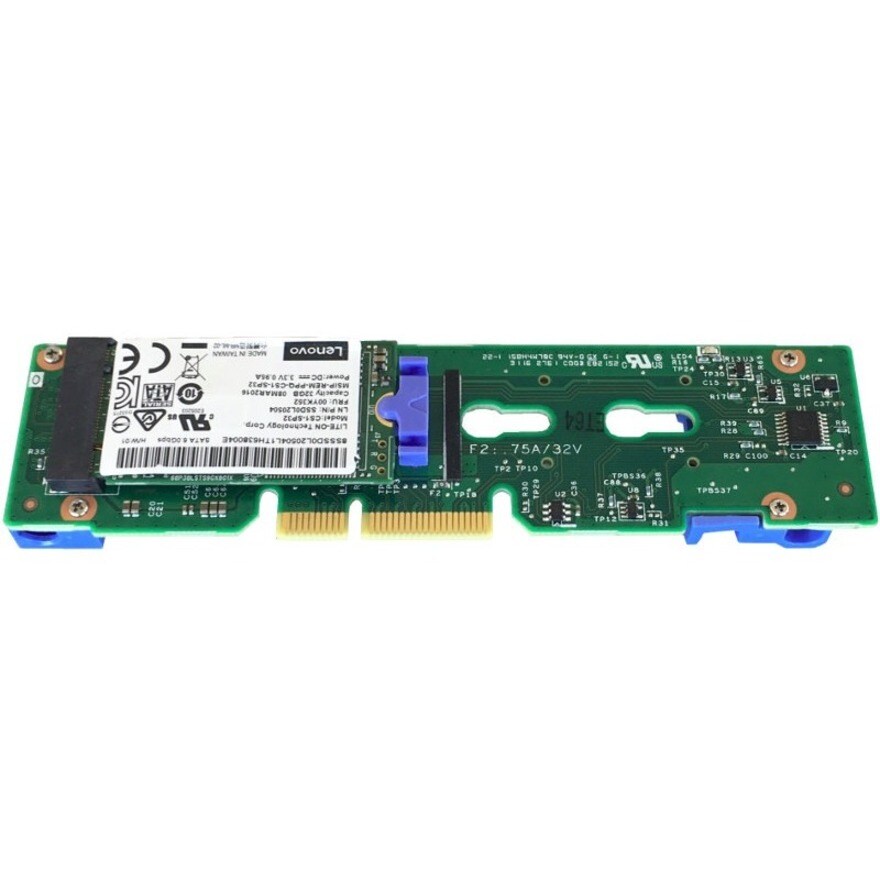

ThinkSystem M.2 5100 480GB SATA 6Gbps Non-Hot-Swap SSD
M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives with the addition of a supported M.2 adapter.
The M.2 drives install into an M.2 adapter which in turn is installed in a dedicated slot on the system board of the ThinkSystem server. With two M.2 drives configured, the drives are configured by default as a RAID-1 mirrored pair for redundancy.
There are two M.2 adapters supported:
- Single M.2 Adapter, which supports one M.2 drive; available as the ThinkSystem M.2 Enablement Kit
- Dual M.2 Adapter, which supports one or two M.2 drives; available as the ThinkSystem M.2 with Mirroring Enablement Kit
- Have data stored faster with SATA/600 interface that optimizes burst performance
- The high-read speed of 540 MB/s maximizes system performance and saves time while you are doing complex tasks
- With the high-write speed of 410 MB/s, get a quick response when updating or transferring files
- Provides sufficient storage capacity of 480 GB for your computer
Technical Specifications
Network & Communication
| Wireless LAN | No |
Technical Information
| Storage Capacity | 480 GB |
Interfaces/Ports
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
General Information
| Product Type | Solid State Drive |
| Manufacturer Part Number | 7SD7A05703 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 5100 PRO |
| Product Name | ThinkSystem M.2 5100 480GB SATA 6Gbps Non-Hot-Swap SSD |
| Product Series | 5100 |
| Brand Name | Lenovo |
Miscellaneous
| Compatibility |
Lenovo ThinkSystem Servers: |
| Device Supported | Server |
Drive Performance
| Maximum Read Transfer Rate | 540 MB/s |
| Maximum Write Transfer Rate | 410 MB/s |
| Random 4KB Read | 93000IOPS |
| Random 4KB Write | 43000IOPS |
Physical Characteristics
| Weight (Approximate) | 10 g |
| Drive Type | Internal |
| Form Factor | M.2 2280 |
| Width | 22 mm |
| Depth | 80 mm |
