Product Overview

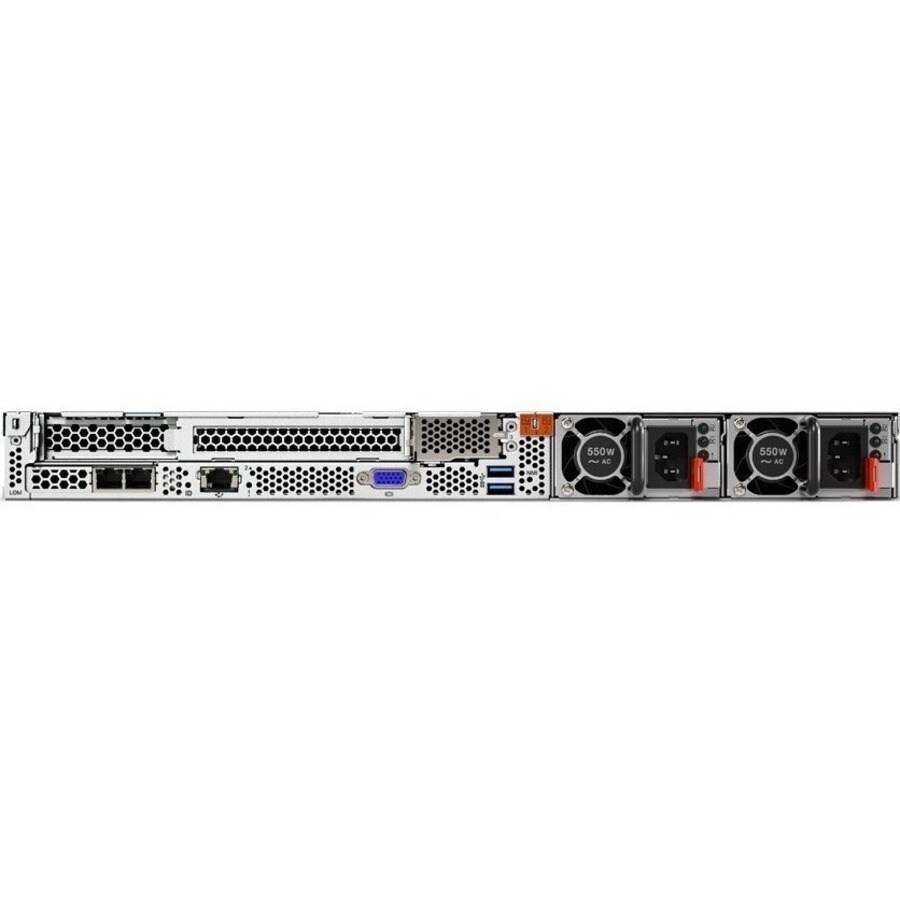

THINKSYSTEM SR630 4110X1 16GX1
Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 6, 10, 50, 60, JBOD)
- 1 x 750 W power supply unit (PSU) included
- 16 GB powerful memory for any computational task
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
I/O Expansions
| "Number of Internal 2.5"" Bays" | 10 |
| Number of Total Expansion Bays | 10 |
| Hot Swappable Bays | Yes |
Controllers
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
Memory
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Total Number of Memory Slots | 24.0 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X02A04HAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X02A04HAU |
| Product Name | ThinkSystem SR630 7X02A04HAU Server |
| Product Line | ThinkSystem |
| Product Series | SR630 |
| Brand Name | Lenovo |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 750 W |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) | 18.80 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 434.3 mm |
| Depth | 713.7 mm |
Processor
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4110 |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
