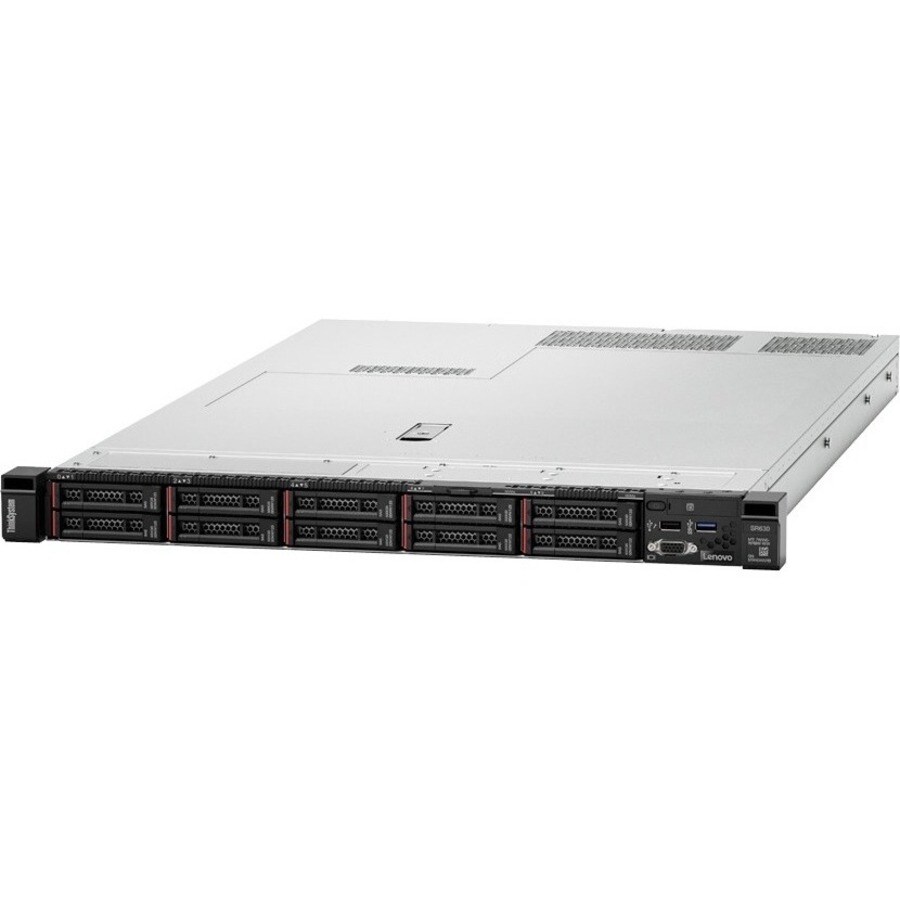

SR630 XEON BRONZE 31046C 1.7GHZ 8GB 750W
SR630 XEON BRONZE 31046C 1.7GHZ 8GB 750W
Product Overview
SR630 XEON BRONZE 3104 6C 1.7GHZ 1X8GB (1RX8 1.2V) RDIMM 1X2.5" SATA/SAS 8-BAY 530-8I PCIE 1X750W 1XTOOLLESS SLIDE RAIL
Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Gigabit Ethernet port for ultra-fast network speeds
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 750 W power supply unit (PSU) for your system's power requirements
- 8 GB memory offers effective multitasking
Technical Specifications
| Ethernet Technology | Gigabit Ethernet |
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Hot Swappable Bays | Yes |
| RAID Levels | 0, 1, 5, 10, 50, JBOD |
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
| Standard Memory | 8 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Total Number of Memory Slots | 24.0 |
| Product Type | Server |
| Manufacturer Part Number | 7X02A058AU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X02A058AU |
| Product Name | ThinkSystem SR630 7X02A058AU Server |
| Product Line | ThinkSystem |
| Product Series | SR630 |
| Brand Name | Lenovo |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 750 W |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 18.80 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 434.3 mm |
| Depth | 713.7 mm |
| Processor Speed | 1.70 GHz |
| Processor Type | Xeon Bronze |
| Processor Model | 3104 |
| Processor Core | Hexa-core (6 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
