THINKSYSTEM SR630 SILVER 4208 8C16GBNO
THINKSYSTEM SR630 SILVER 4208 8C16GBNO
Product Overview

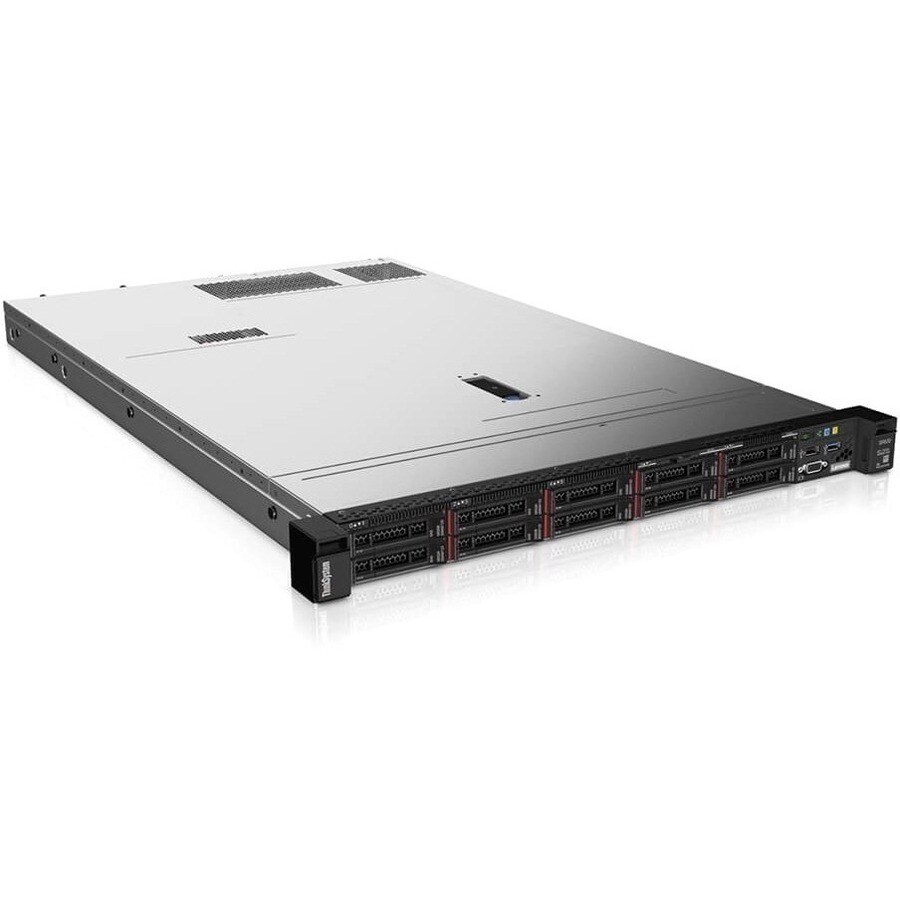

THINKSYSTEM SR630 SILVER 4208 8C (1/2) 16GB(1/24) 2.5" HS(0/8) NO RAID CARD NO BP 750W(1/2) 3YR
Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Gigabit Ethernet port for ultra-fast network speeds
- 750 W power supply unit (PSU) included
- 16 GB powerful memory for any computational task
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
I/O Expansions
| Riser Card | Slot 1: PCIe 3.0 x8, ML2 x8, or ML2 x16; low profile Slot 2: PCIe 3.0 x16 or x8; low profile or full-height, half-length Slot 3: PCIe 3.0 x16; low profile Slot 4: PCIe 3.0 x8 |
| Total Number of Expansion Slots | 4.0 |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) | 18.80 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 434.3 mm |
| Depth | 713.7 mm |
Operating System
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 8.5 |
| SUSE Linux Enterprise Server 12 SP4 | |
| Red Hat Enterprise Linux 9.0 | |
| Windows Server 2019 | |
| Windows Server 2016 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SuSE Linux Enterprise Server 15 | |
| Windows Server 2022 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.6 |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Remote Management Controller | XClarity Controller Enterprise |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Processor
| Cache | 11 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4208 |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X02A0HHAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X02A0HHAU |
| Product Name | ThinkSystem SR630 7X02A0HHAU Server |
| Product Line | ThinkSystem |
| Product Series | SR630 |
| Brand Name | Lenovo |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 3 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 2.93 GHz |
| Total Number of Memory Slots | 24.0 |
Price Trend
Current Price
AUD 4,726.00
