ThinkSystem SR630 6248x2 32GBx12
ThinkSystem SR630 6248x2 32GBx12
Product Overview

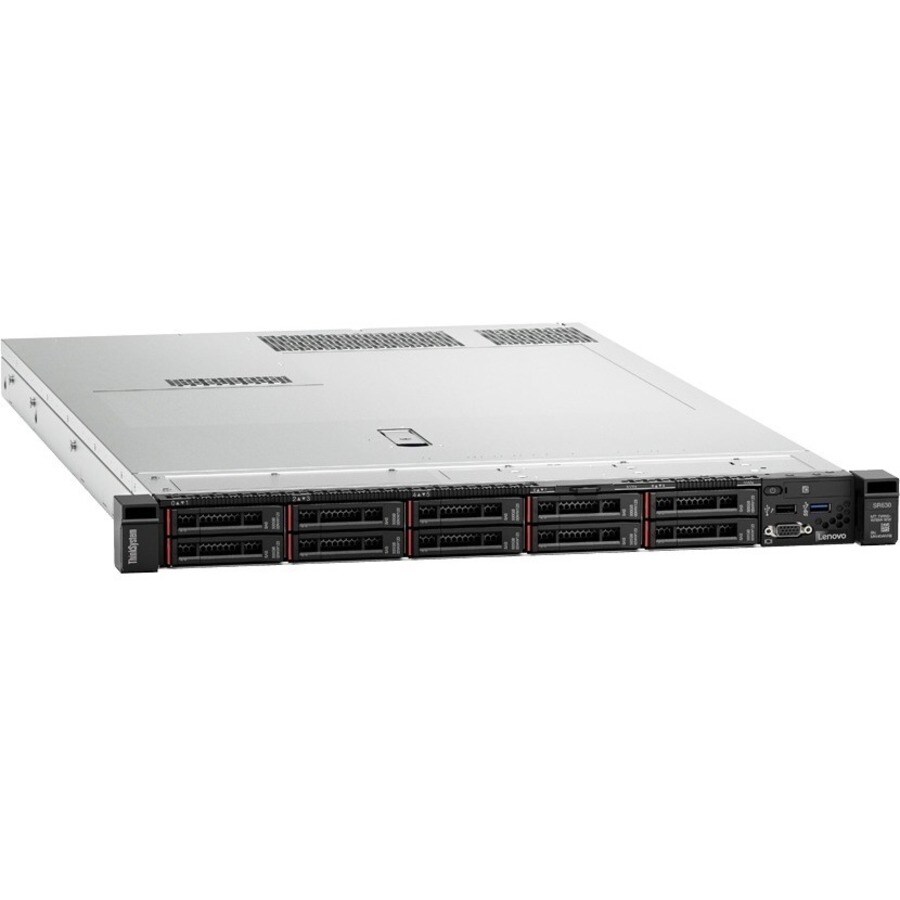

ThinkSystem SR630 6248x2 32GBx12
Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- RAID provides data reliability, fault tolerance and improves overall performance
Technical Specifications
Storage
| Optical Drive Type | No |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
Controllers
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
Miscellaneous
| Security Features |
|
| Energy Star | Yes |
Network & Communication
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet |
Power Description
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
Processor
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
I/O Expansions
| Hot Swappable Bays | Yes |
| PCI Express x8 (Gen 3.x) Slots | 1 |
| PCI Express Details | PCIe 3.0 x8 (dedicated to an internal storage controller) |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Remote Management Controller | XClarity Controller (XCC) |
Operating System
| Operating System Supported | SuSE Linux Enterprise Server |
| Red Hat Enterprise Linux | |
| Windows Server |
Memory
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Memory Technology | TruDDR4 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 2.93 GHz |
| Total Number of Memory Slots | 24.0 |
Physical Characteristics
| Weight (Approximate) | 26 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 434.3 mm |
| Depth | 764.5 mm |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X02SYPS00 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X02SYPS00 |
| Product Name | ThinkSystem SR630 7X02SYPS00 Server |
| Product Line | ThinkSystem |
| Product Series | SR630 |
| Brand Name | Lenovo |
Price Trend
Current Price
AUD 292,148.00
