ThinkSystem SR630 Silver 4112 4C 2.6GHz
ThinkSystem SR630 Silver 4112 4C 2.6GHz
Product Overview

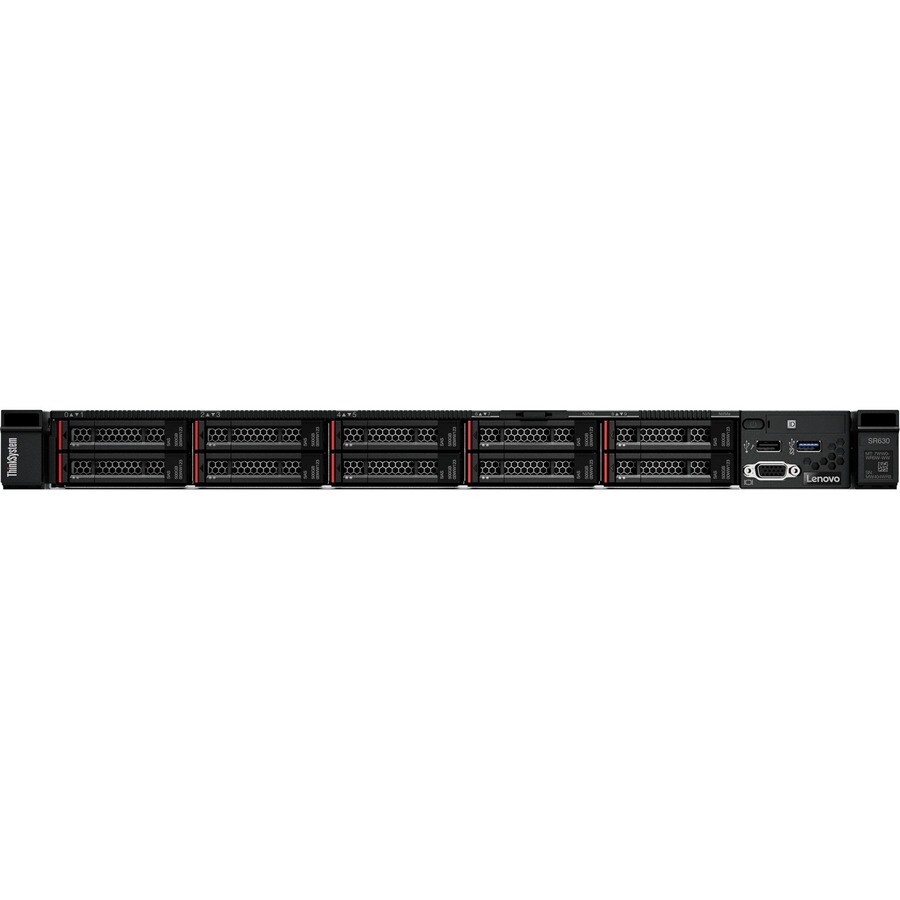

ThinkSystem SR630 Intel Xeon Silver 4112 4C 2.6GHz
Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- RAID provides data reliability, fault tolerance and improves overall performance
- 2 x 550 W power supply unit (PSU) included
- With 16 GB memory, improve system performance to execute complex applications
- 480 GB SSD provides you with enough space to store large files, digital content, documents and other data
Technical Specifications
Miscellaneous
| Energy Star | Yes |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Storage
| Solid State Drive Interface | Serial ATA/600 |
| Solid State Drive Configuration | 2 x 240GB |
| Total Solid State Drive Capacity | 480 GB |
Controllers
| RAID Levels | 0, 1, 5, 10, 50, JBOD |
| Controller Type | Serial ATA/600 |
| 12Gb/s SAS | |
| RAID Supported | Yes |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X02TWN900 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X02TWN900 |
| Product Name | ThinkSystem SR630 7X02TWN900 Server |
| Product Line | ThinkSystem |
| Product Series | SR630 |
| Brand Name | Lenovo |
Memory
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Total Number of Memory Slots | 24.0 |
Power Description
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 550 W |
Physical Characteristics
| Weight (Approximate) | 18.80 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 434.3 mm |
| Depth | 713.7 mm |
Processor
| Processor Speed | 2.60 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4112 |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
Price Trend
Current Price
AUD 36,679.00
