TopSeller SR550 Xeon Gold 5120 14C 2.2G
TopSeller SR550 Xeon Gold 5120 14C 2.2G
Product Overview
TopSeller SR550 Xeon Gold 5120 14C 2.2GHz

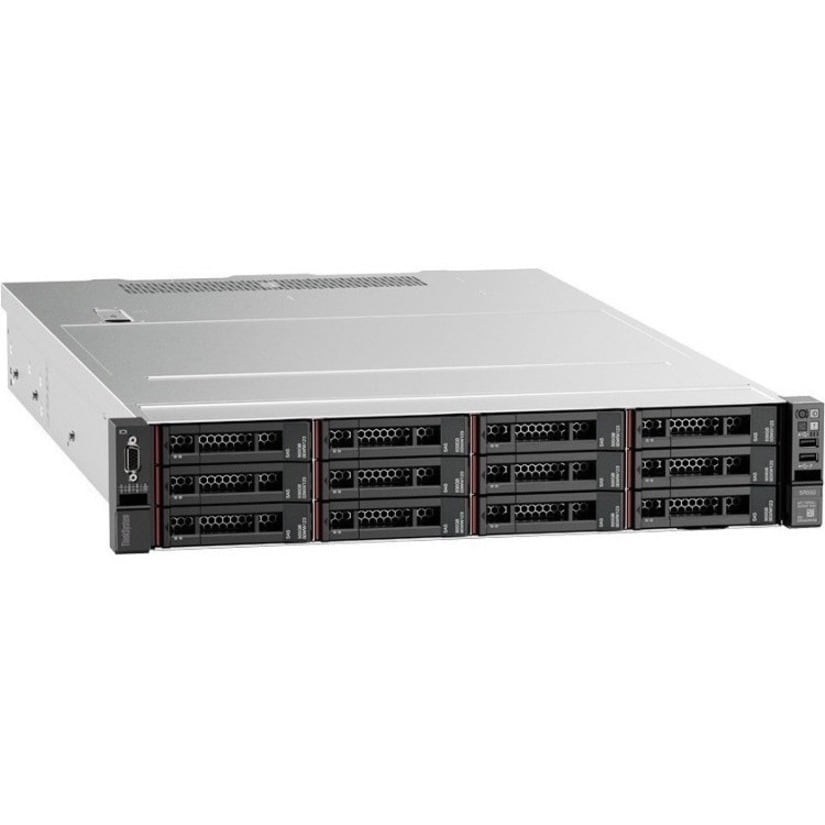

The Lenovo ThinkSystem SR550 dual-socket 2U rack server is ideal for small to large organizations that need industry-leading reliability, management, and security, as well as cost-optimized performance, storage capacity, and flexible I/O. Designed to handle a wide range of workloads, the SR550 server cost-effectively performs complex analytics on structured and unstructured data, speeds transactional systems, and powers through collaboration workloads with ever-growing data sets and large files shared within an organization.
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 6, 10, 50, 60, JBOD)
- 750 W power supply unit (PSU) included
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Controllers
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
| Controller Model | RAID 930-8i |
I/O Expansions
| Number of Total Expansion Bays | 8 |
| "Number of 3.5"" Bays" | 8 |
| Hot Swappable Bays | Yes |
| PCI Express x8 (Gen 3.x) Slots | 4 |
| Number of SFF Bays | 8 |
Interfaces/Ports
| VGA | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Number of VGA Ports | 1 |
Memory
| Error Checking | ECC |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 2.67 GHz |
| Total Number of Memory Slots | 12.0 |
Operating System
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 7.3 |
| Windows Server 2012 R2 Standard | |
| Windows Server 2016 | |
| Red Hat Enterprise Linux 6.9 | |
| Red Hat Enterprise linux 7.4 |
Physical Characteristics
| Weight (Approximate) | 26 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 718.8 mm |
Miscellaneous
| Package Contents |
|
| Certifications & Standards |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Processor
| Processor Speed | 2.20 GHz |
| Processor Type | Xeon Gold |
| Processor Model | 5120 |
| Processor Core | Tetradeca-core (14 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X04A040AU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X04A040AU |
| Product Name | ThinkSystem SR550 7X04A040AU Server |
| Product Line | ThinkSystem |
| Product Series | SR550 |
| Brand Name | Lenovo |
Price Trend
Current Price
AUD 8,625.00
