ThinkSystem SR550 4208 16GB
ThinkSystem SR550 4208 16GB
Product Overview

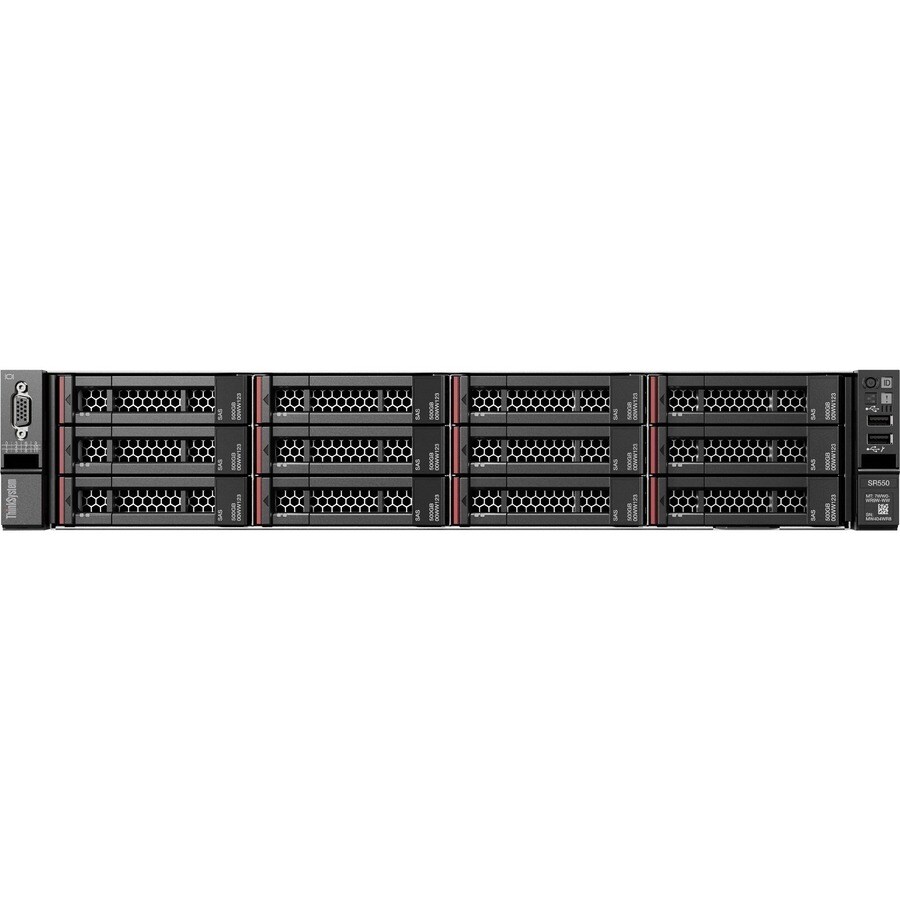

ThinkSystem SR550 4208 16GB
The Lenovo ThinkSystem SR550 dual-socket 2U rack server is ideal for small to large organizations that need industry-leading reliability, management, and security, as well as cost-optimized performance, storage capacity, and flexible I/O. Designed to handle a wide range of workloads, the SR550 server costeffectively performs complex analytics on structured and unstructured data, speeds transactional systems, and powers through collaboration workloads with ever-growing data sets and large files shared within an organization.
Featuring the second generation of the Intel Xeon Processor Scalable Family, the SR550 server offers a balance of performance, capacity and value. The SR550 server supports up to two processors, up to 768 GB of 2933 MHz TruDDR4 memory, up to 16x 2.5-inch or up to 12x 3.5-inch drive bays with an extensive choice of SAS/SATA SSDs and SAS/SATA HDDs, and flexible and scalable I/O expansion options with a LOM slot and up to 6x PCIe slots. The built-in next-generation Lenovo XClarity Controller provides advanced service processor control, monitoring, and alerting functions.
- Gigabit Ethernet port for ultra-fast network speeds
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 6, 10, 50, 60, JBOD)
- 1 x 750 W power supply unit (PSU) included
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
| Ethernet Technology | Gigabit Ethernet |
| Additional Warranty Information | Three-year customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered. |
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | Serial ATA/600 |
| 12Gb/s SAS | |
| RAID Supported | Yes |
| Controller Model | 930-16i |
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 26 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 764.5 mm |
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 7.8 |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 9.0 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Windows Server 2016 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 8.3 |
| Number of Total Expansion Bays | 12 |
| "Number of 3.5"" Bays" | 12 |
| Total Number of Expansion Slots | 1.0 |
| Hot Swappable Bays | Yes |
| PCI Express x8 (Gen 3.x) Slots | 1 |
| Number of LFF Bays | 12 |
| PCI Express Details | 1x PCIe x8 |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Remote Management Controller | XClarity Controller Enterprise |
| Error Checking | ECC |
| Maximum Memory Supported | 768 GB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 2.67 GHz |
| Total Number of Memory Slots | 12.0 |
| Product Type | Server |
| Manufacturer Part Number | 7X04A073AU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X04A073AU |
| Product Name | ThinkSystem SR550 7X04A073AU Server |
| Product Line | ThinkSystem |
| Product Series | SR550 |
| Brand Name | Lenovo |
| Cache | 11 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4208 |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 2nd Gen |
