THINKSYSTEM SR650 4215 16GB
THINKSYSTEM SR650 4215 16GB
Product Overview

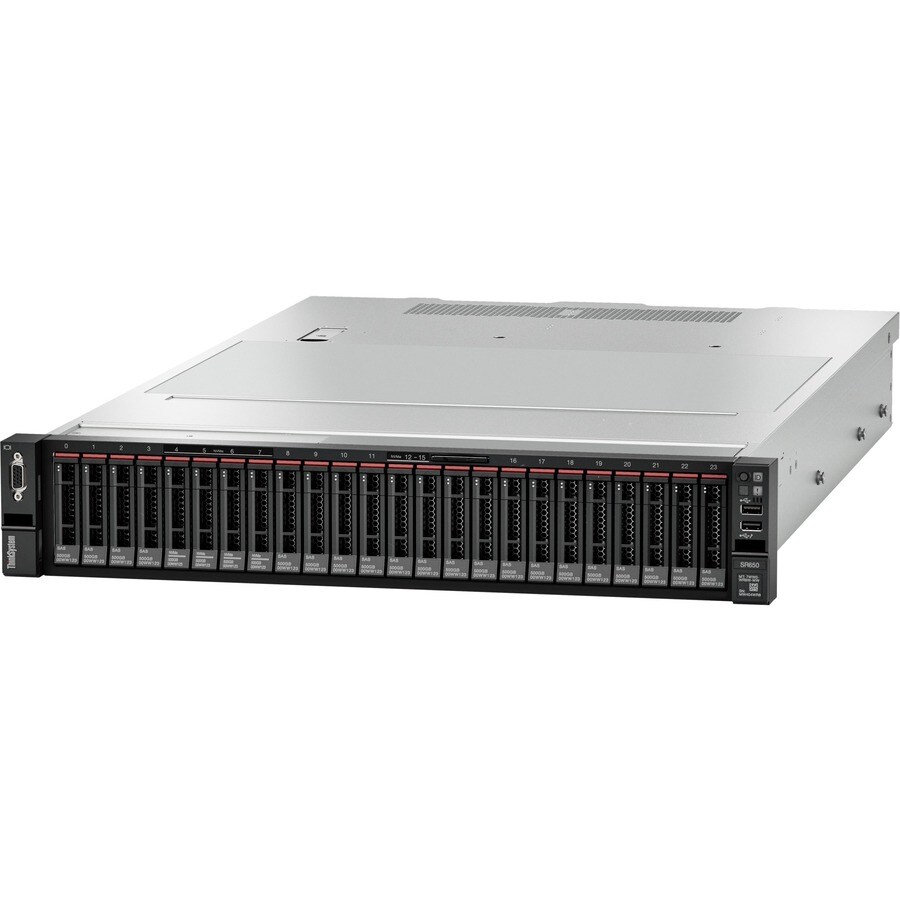

THINKSYSTEM SR650 4215 16GB
Lenovo ThinkSystem SR650 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), enterprise applications, collaboration/email, and business analytics and big data.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- RAID provides data reliability, fault tolerance and improves overall performance
- 750 W power supply unit (PSU) fulfils your system's power requirements
- With 16 GB memory, you can multitask between applications smoothly
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 16 MB |
Controllers
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Serial ATA | |
| RAID Supported | Yes |
| Controller Model | 930-8i |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) | 32 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 764.5 mm |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Operating System
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 7.9 |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 9.0 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 | |
| Red Hat Enterprise Linux 7.8 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 15 SP1 |
I/O Expansions
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 7.0 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 1 |
| PCI Express x8 (Gen 3.x) Slots | 3 |
| Number of SFF Bays | 8 |
| PCI Express Details | 3x PCIe x8, 1x PCIe x16 |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Remote Management Controller | XClarity Controller Enterprise |
Processor
| Cache | 11 MB |
| Processor Speed | 2.50 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4215 |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X06A0E4AU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X06A0E4AU |
| Product Name | ThinkSystem SR650 7X06A0E4AU Server |
| Product Line | ThinkSystem |
| Product Series | SR650 |
| Brand Name | Lenovo |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 3 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 2.93 GHz |
| Total Number of Memory Slots | 24.0 |
Price Trend
Current Price
AUD 11,079.00
