THINKSYSTEM SR530 SILVER 4216 16C 32GB
THINKSYSTEM SR530 SILVER 4216 16C 32GB
Product Overview
THINKSYSTEM SR530 SILVER 4216 16C (1/2) 32GB(1/12) 2.5" HS(0/8) NO RAID CARD NO BP 750W(1/2) 3YR

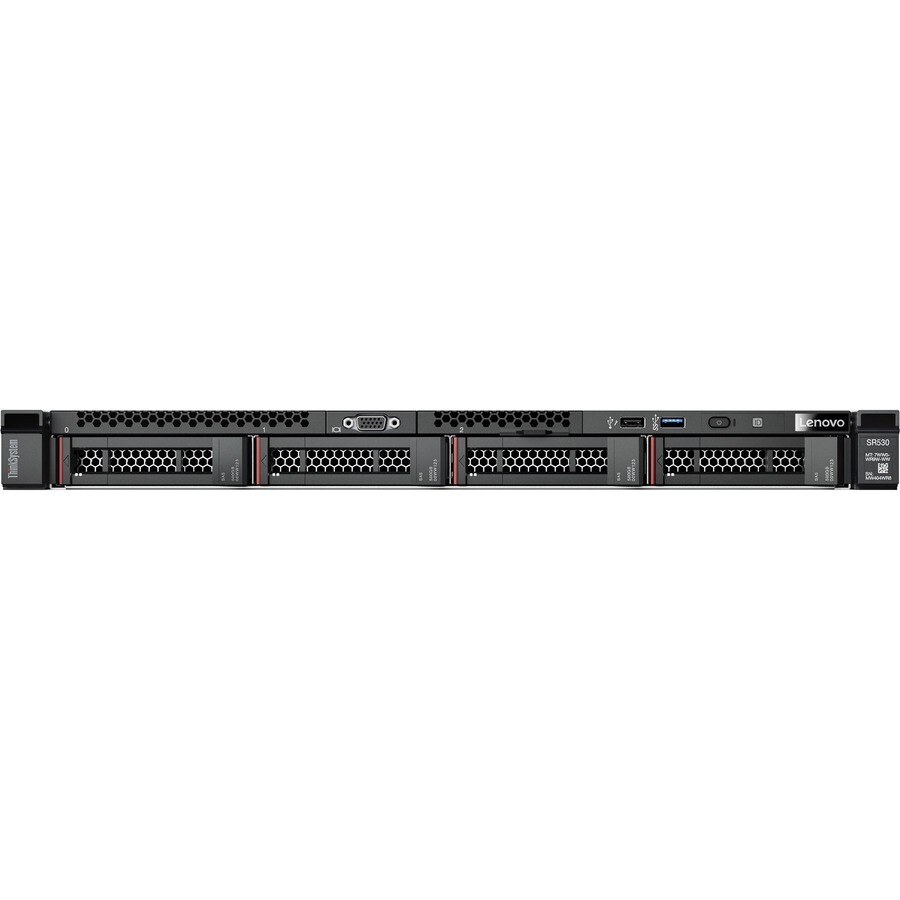

Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- 750 W power supply unit (PSU) fulfils your system's power requirements
- 32 GB memory offers effective multitasking
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C622 |
Controllers
| Controller Type | Serial ATA |
| Serial Attached SCSI (SAS) |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
I/O Expansions
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | x8 LP, x16 LP |
Miscellaneous
| Package Contents |
|
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) | 16 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 434.3 mm |
| Depth | 749.3 mm |
Operating System
| Operating System | No |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP3 |
| Red Hat Enterprise Linux 7.8 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 3 |
| Remote Management Controller | XClarity Controller Enterprise (XCC) |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 768 GB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 2.93 GHz |
| Total Number of Memory Slots | 12.0 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X08A0BLAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X08A0BLAU |
| Product Name | ThinkSystem SR530 7X08A0BLAU Server |
| Product Line | ThinkSystem |
| Product Series | SR530 |
| Brand Name | Lenovo |
Processor
| Cache | 22 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4216 |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 2nd Gen |
