Product Overview

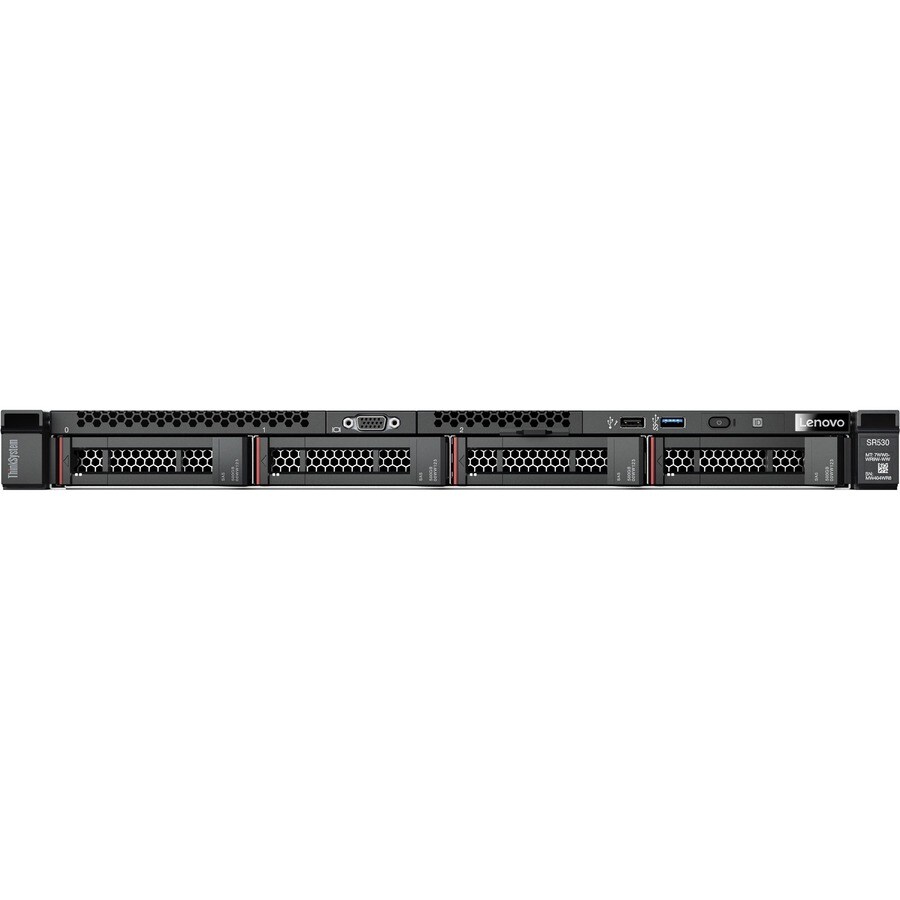

ThinkSystem SR530 1xIntel Xeon Silver 4208 8C 2.1GHz 85W 1x16GB 2Rx8 ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Adapter 1x750W XCC Enterprise ThinkSystem Toolless Slide Rail Kit with 1U CMA

Lenovo ThinkSystem SR530 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as cost-optimized performance and flexibility for future growth. Designed to handle a wide range of workloads, such as IT infrastructure, collaboration, and entry cloud, it can be the foundation of your online business.

Featuring the second generation of the Intel Xeon Processor Scalable Family (Xeon SP Gen 2), the SR530 server offers a balance of performance, capacity and value. The SR530 server supports up to two processors, up to 768 GB of 2933 MHz TruDDR4 memory, 8x 2.5-inch or 4x 3.5-inch drive bays with an extensive choice of SAS/SATA SSDs and SAS/SATA HDDs, and flexible I/O expansion options with a LOM slot and up to 3x PCIe slots.

The SR530 server offers basic software RAID or advanced hardware RAID protection and a wide range of networking options, including embedded LOM, selectable LOM, ML2, and PCIe network adapters. The next-generation Lenovo XClarity Controller, which is built into the SR530 server, provides advanced service processor control, monitoring, and alerting functions.

  • Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
  • RAID provides data reliability, fault tolerance and improves overall performance
  • 750 W power supply unit (PSU) fulfils your system's power requirements
  • 16 GB powerful memory for any computational task

Technical Specifications

Network & Communication
Ethernet TechnologyGigabit Ethernet
Storage
Optical Drive TypeNo
Warranty
Additional Warranty Information

three-year (7X08) customer-replaceable unit (CRU) and onsite limited warranty with 9x5 Next Business Day Parts Delivered.

Chipset
Chipset ManufacturerIntel
Chipset ModelC622
Display & Graphics
Graphics Controller ManufacturerMatrox
Graphics Controller ModelG200
Graphics Memory Capacity16 MB
Controllers
Controller Type12Gb/s SAS
Serial ATA/600
RAID SupportedYes
Controller Model9350-8i 2GB Flash
I/O Expansions
Total Number of Expansion Slots3.0
PCI Express DetailsSlot 3: PCIe 3.0 x8 or x16; low profile
Slot 2: PCIe 3.0 x16 or ML2 x8; low profile or full-height, half-length
Slot 1: PCIe 3.0 x8; low profile
Miscellaneous
Security Features
    • Power-on Password
    • Administrator's Password
    • Secure Firmware Updates
    • Onboard Trusted Platform Module (TPM) version 1.2 or 2.0
    • Self-encrypting drives (SEDs) with support for enterprise key managers
Environmentally FriendlyYes
Energy StarYes
Energy Efficiency CertificationENERGY STAR 3.0
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Physical Characteristics
Weight (Approximate)16 kg
Form FactorRack
Rack Height1U
Height43.2 mm
Width434.3 mm
Depth749.3 mm
Operating System
Operating System SupportedRed Hat Enterprise Linux 7.6
Red Hat Enterprise Linux 8.4
Red Hat Enterprise Linux 8.6
Red Hat Enterprise Linux 8.7
Red Hat Enterprise Linux 9.0
Red Hat Enterprise Linux 9.1
SUSE Linux Enterprise Server 12 SP4
SUSE Linux Enterprise Server 12 SP5
SuSE Linux Enterprise Server 15
SUSE Linux Enterprise Server 15 SP1
SUSE Linux Enterprise Server 15 SP2
SUSE Linux Enterprise Server 15 SP3
Ubuntu 22.04 LTS
Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.7
Red Hat Enterprise Linux 7.8
Red Hat Enterprise Linux 7.9
Red Hat Enterprise Linux 8
Red Hat Enterprise Linux 8.1
Red Hat Enterprise Linux 8.2
Red Hat Enterprise Linux 8.3
Red Hat Enterprise Linux 8.5
Memory
Error CheckingECC
Maximum Memory Supported768 GB
Signal ProcessingRegistered (Buffered)
Standard Memory16 GB
Memory TechnologyTruDDR4
Number of Occupied Memory Slots1
Memory Clock Speed2.93 GHz
Total Number of Memory Slots12.0
Power Description
Input Voltage120 V AC
230 V AC
Power SourcePower Supply
Plug/Connector TypeC13
Number of Power Supplies Supported2
Number of Power Supplies Installed1
Hot Swappable Power SupplyYes
Maximum Power Supply Wattage750 W
General Information
Product TypeServer
Manufacturer Part Number7X08A0BYAU
Manufacturer Website Addresshttp://www3.lenovo.com/au/en
ManufacturerLenovo Group Limited
Product Model7X08A0BYAU
Product NameThinkSystem SR530 7X08A0BYAU Server
Product LineThinkSystem
Product SeriesSR530
Brand NameLenovo
Interfaces/Ports
VGAYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Remote ManagementYes
Total Number of USB Ports4
Number of USB 2.0 Ports1
Number of USB 3.0 Ports3
Number of VGA Ports1
Remote Management ControllerXClarity Controller Enterprise
Processor
Cache11 MB
Processor Speed2.10 GHz
Processor TypeXeon Silver
Processor Model4208
Processor CoreOcta-core (8 Core)
Processor ManufacturerIntel
Number of Processors Supported2
Number of Processors Installed1
Processor Generation2nd Gen
