ThinkSystem ST550 4208 16GB
ThinkSystem ST550 4208 16GB
Product Overview
ThinkSystem ST550 4208 16GB

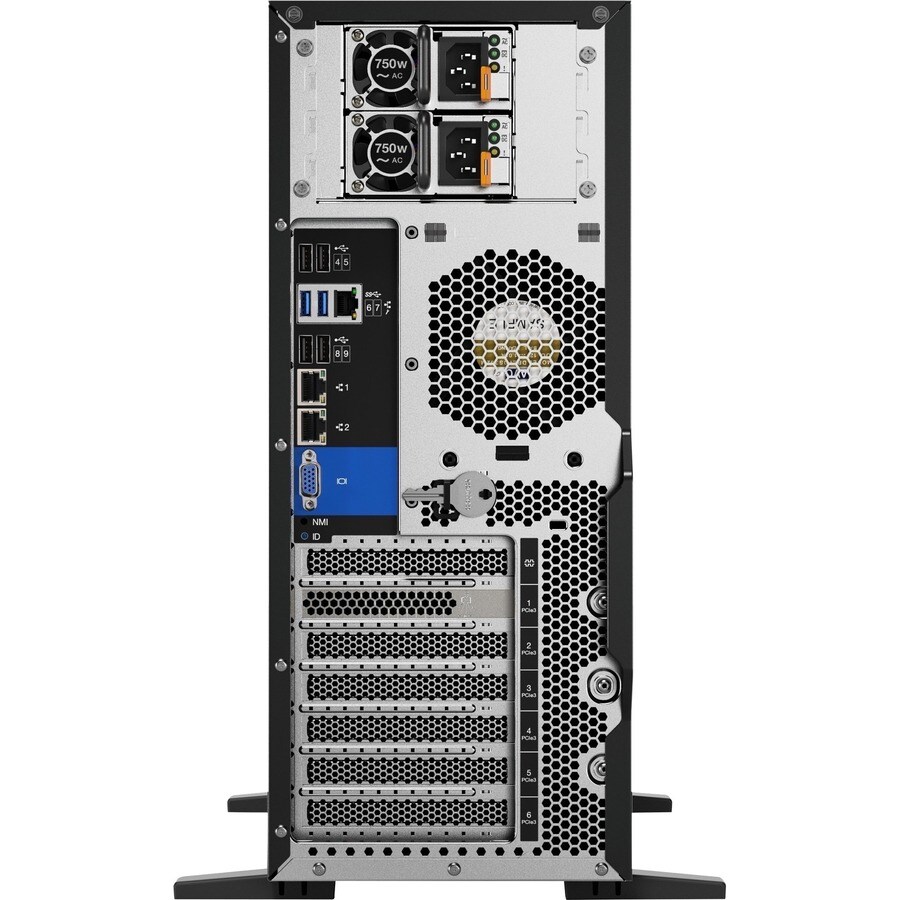

The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. It is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions, and remote/branch offices.The ST550 server now supports second-generation Intel Xeon Processor Scalable Family processors with up to 768 GB of TruDDR4 system memory.
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- RAID provides data reliability, fault tolerance and improves overall performance
- 750 W power supply unit (PSU) included
- With 16 GB memory, you can multitask between applications smoothly
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Storage
| Total Hard Drive Capacity | No |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Controllers
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
| Controller Model | 930-8i |
Miscellaneous
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.1 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) | 36 kg |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 436.9 mm |
| Width | 175.3 mm |
| Depth | 660.4 mm |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Operating System
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 7.8 |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 9.0 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X10A0AHAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X10A0AHAU |
| Product Name | ThinkSystem ST550 7X10A0AHAU Server |
| Product Line | ThinkSystem |
| Product Series | ST550 |
| Brand Name | Lenovo |
I/O Expansions
| "Number of External 5.25"" Bays" | 2 |
| Number of Total Expansion Bays | 6 |
| "Number of 3.5"" Bays" | 4 |
| Total Number of Expansion Slots | 6.0 |
| Hot Swappable Bays | Yes |
| PCI Express x16 (Gen 3.x) Slots | 4 |
| PCI Express x8 (Gen 3.x) Slots | 2 |
| Number of LFF Bays | 4 |
| PCI Express Details | Slot 1: PCIe 3.0 x8 (25W), Slot 2: PCIe 3.0 x16 (75W), Slot 3: PCIe 3.0 x16 (75W), Slot 4: PCIe 3.0 x16 (x8 wired) (25W), Slot 5: PCIe 3.0 x16 (75W), Slot 6: PCIe 3.0 x8 (x4 wired) (25W) |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 5 |
| Number of USB 3.0 Ports | 4 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Standard |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 768 GB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | No |
| Memory Clock Speed | 2.93 GHz |
| Total Number of Memory Slots | 12.0 |
Processor
| Cache | 11 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4208 |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 2nd Gen |
