THINKSYSTEM ST550 4208 16GB
THINKSYSTEM ST550 4208 16GB
Product Overview
LENOVO ST550 SILVER 4208 8C (1/2) 16GB (1/6) 3.5" HS(0/8) 930-8I 2GB 750W(1/2) 3YR

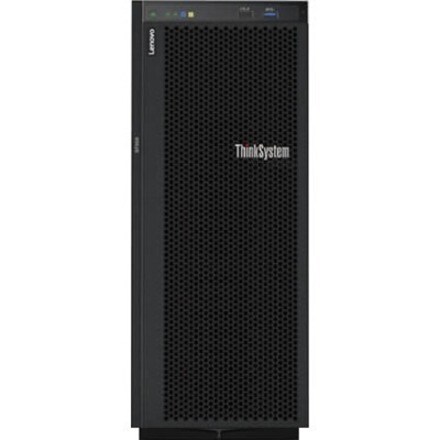

The Lenovo ThinkSystem ST550 2-socket 4U rack-mountable tower server provides outstanding performance and industry-leading reliability. Now available with second-generation Intel Xeon Scalable processors, the ST550 is ideal for small-to-medium businesses, distributed enterprises, retail, educational institutions and branch offices.
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 750 W power supply unit (PSU) for your system's power requirements
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C624 |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Controllers
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | Serial ATA/600 |
| 12Gb/s SAS | |
| RAID Supported | Yes |
| Controller Model | 930-8i |
I/O Expansions
| "Number of External 5.25"" Bays" | 2 |
| Number of Total Expansion Bays | 10 |
| "Number of 3.5"" Bays" | 8 |
| Hot Swappable Bays | Yes |
| Number of LFF Bays | 8 |
Miscellaneous
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.1 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Physical Characteristics
| Weight (Approximate) | 36 kg |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 436.9 mm |
| Width | 271.8 mm |
| Depth | 670.6 mm |
Operating System
| Operating System | No |
| Operating System Supported | Red Hat Enterprise Linux 7.8 |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8 | |
| Red Hat Enterprise Linux 8.1 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| SUSE Linux Enterprise Server 12 SP4 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SuSE Linux Enterprise Server 15 | |
| SUSE Linux Enterprise Server 15 SP1 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Red Hat Enterprise Linux 7.6 | |
| Red Hat Enterprise Linux 7.7 | |
| Windows Server 2022 | |
| Windows Server 2019 | |
| Windows Server 2016 |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 768 GB |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | No |
| Memory Clock Speed | 2.93 GHz |
| Total Number of Memory Slots | 12.0 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7X10A0D0AU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7X10A0D0AU |
| Product Name | ThinkSystem ST550 7X10A0D0AU Server |
| Product Line | ThinkSystem |
| Product Series | ST550 |
| Brand Name | Lenovo |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 5 |
| Number of USB 3.0 Ports | 3 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller |
Processor
| Cache | 11 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4208 |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 2nd Gen |
