Product Overview

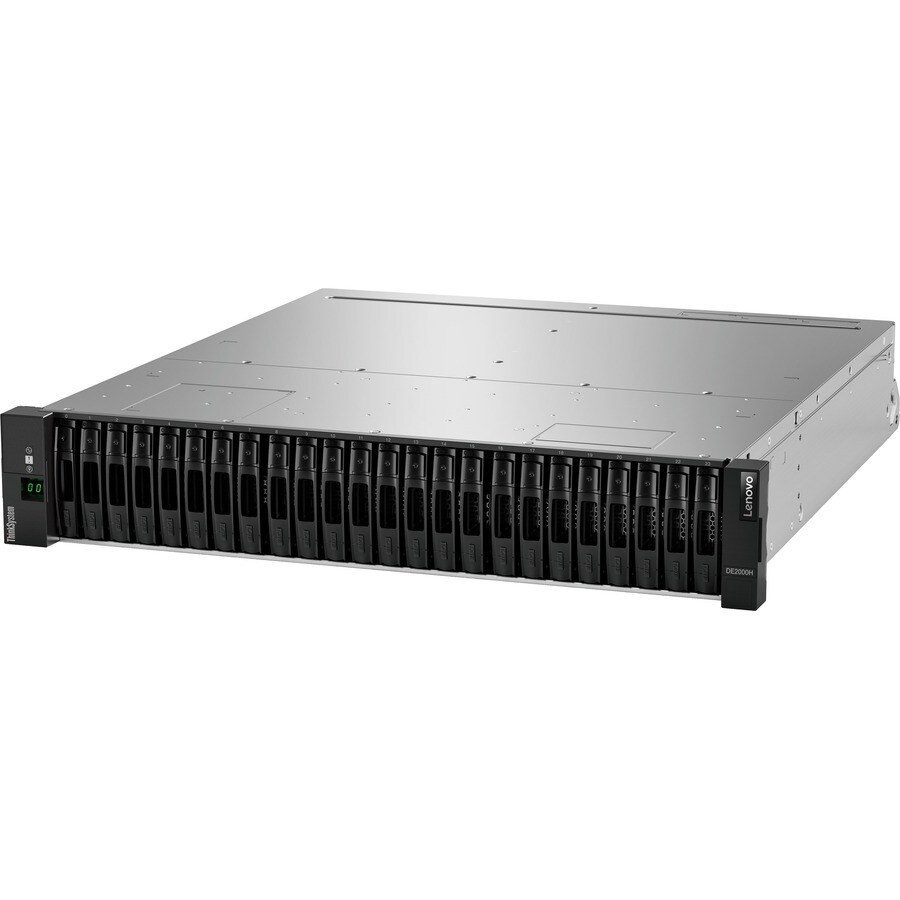

LENOVO THINKSYSTEM DE2000H 10BASE T HYBRID FLASH ARRAY SFF

Lenovo ThinkSystem DE2000H is a low-cost, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE2000H is a perfect fit for small offices and remote and branch offices of large enterprises that run a wide range of workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

ThinkSystem DE2000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) or 12 large form-factor (3.5-inch LFF) drives (2U12 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity, with an option for 12 Gb SAS or 1/10 Gb iSCSI RJ-45 connections with the host interface cards.

The ThinkSystem DE2000H Storage Array scales up to 96 drives with the attachment of Lenovo ThinkSystem DE120S 2U12 and DE240S 2U24 SFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).

  • Optimize business network's performance with 10 Gigabit Ethernet connectivity
  • Through RAID levels (0, 1, 3, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance

Technical Specifications

Network & Communication
Ethernet Technology10 Gigabit Ethernet
I/O Expansions
Number of Total Expansion Bays24
"Number of 2.5"" Bays"24
Interfaces/Ports
Network (RJ-45)Yes
Total Number of USB Ports2
Number of SAS Ports (External)4
Power Description
Number of Power Supplies Installed2
Redundant Power SupplyYes
Maximum Power Supply Wattage913 W
General Information
Product TypeSAN Storage System
Manufacturer Part Number7Y71A002WW
Manufacturer Website Addresshttp://www3.lenovo.com/au/en
Packaged Quantity1
ManufacturerLenovo Group Limited
Product ModelDE2000H
Product NameThinkSystem DE2000H 10GBASE-T Hybrid Flash Array SFF
Product LineThinkSystem
Product SeriesDE
Brand NameLenovo
Controllers
RAID Levels0, 1, 3, 5, 6, 10
Controller Type12Gb/s SAS
Number of Controllers2
RAID SupportedYes
Storage
Number of Hard Drives Supported24
Number of Hard Drives InstalledNo
Number of Solid State Drive Supported24
Number of Solid State Drive InstalledNo
Physical Characteristics
Form FactorRack-mountable
Rack Height2U
Height85 mm
Width449 mm
Depth553 mm
Management & Protocols
ProtocolsiSCSI
SMI-S
SSL
SSH
LDAP
SNMP

Price Trend

Current Price
AUD 19,410.00
