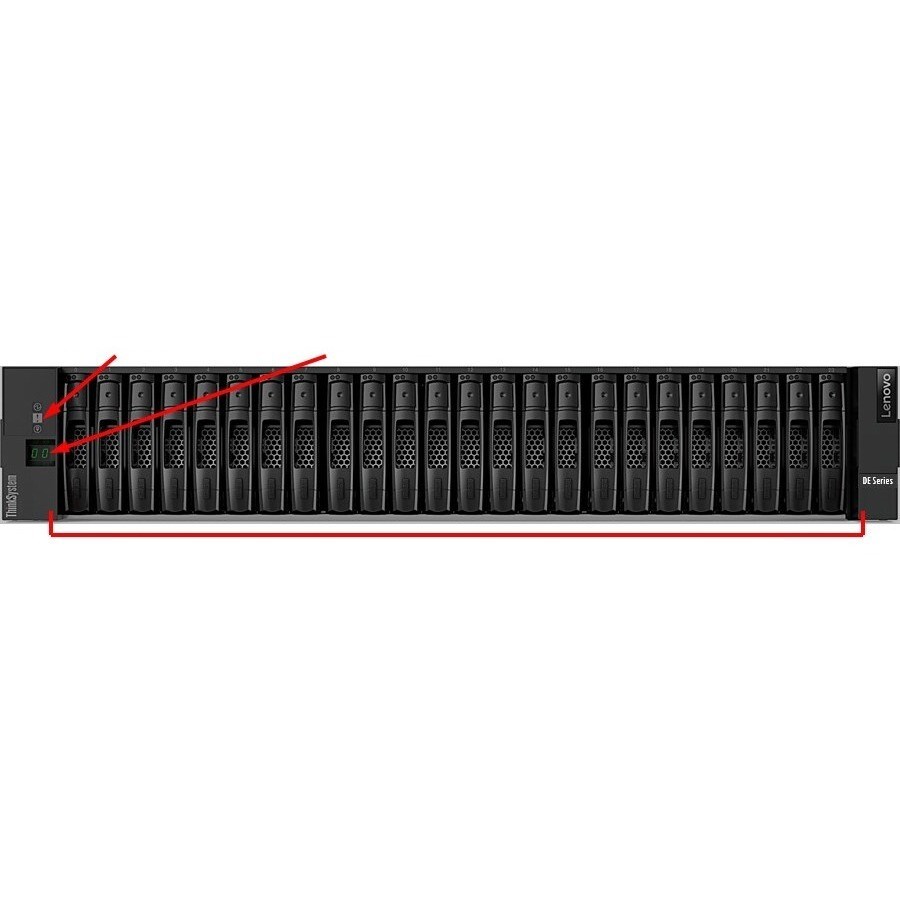

LENOVO DE Controller DE2000H 8G HICless 2U24 SFF, Gen2
LENOVO DE Controller DE2000H 8G HICless 2U24 SFF, Gen2
Product Overview
TS DE2000H HYBRID FLASH ARRAY SFF GEN2
Lenovo ThinkSystem DE2000H is a low-cost, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE2000H Hybrid Storage Array, its key features and specifications, components and options, and configuration guidelines.
This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE2000H Hybrid Storage Array and consider its use in their solutions.
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- RAID technology - data reliability, fault tolerance and improved overall performance
Technical Specifications
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Additional Warranty Information | The ThinkSystem DE Series enclosures have a three-year customer-replaceable unit (CRU) and onsite limited (for field-replaceable units [FRUs] only) |
| Number of Total Expansion Bays | 24 |
| "Number of 2.5"" Bays" | 24 |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| Controller Type | 12Gb/s SAS |
| Number of Controllers | 2 |
| RAID Supported | Yes |
| Plug/Connector Type | C14 |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 913 W |
| Number of Hard Drives Supported | 24 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | 0 |
| SSD Cache Capacity | 16 GB |
| Host Interface | 12Gb/s SAS |
| Fibre Channel | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of SAS Ports (External) | 4 |
| Protocols | FCP |
| LDAP | |
| SNMP | |
| SSH | |
| SSL | |
| SMI-S |
| Weight (Approximate) | 27.60 kg |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 85 mm |
| Width | 449 mm |
| Depth | 553 mm |
| Product Type | DAS/SAN Storage System |
| Manufacturer Part Number | 7Y71A00QWW |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | DE2000H |
| Product Name | ThinkSystem DE2000H DAS/SAN Storage System |
| Product Line | ThinkSystem |
| Product Series | DE |
| Brand Name | Lenovo |
