LENOVO THINKSYSTEM DE4000F FC HYBRID FLA
LENOVO THINKSYSTEM DE4000F FC HYBRID FLA
Product Overview

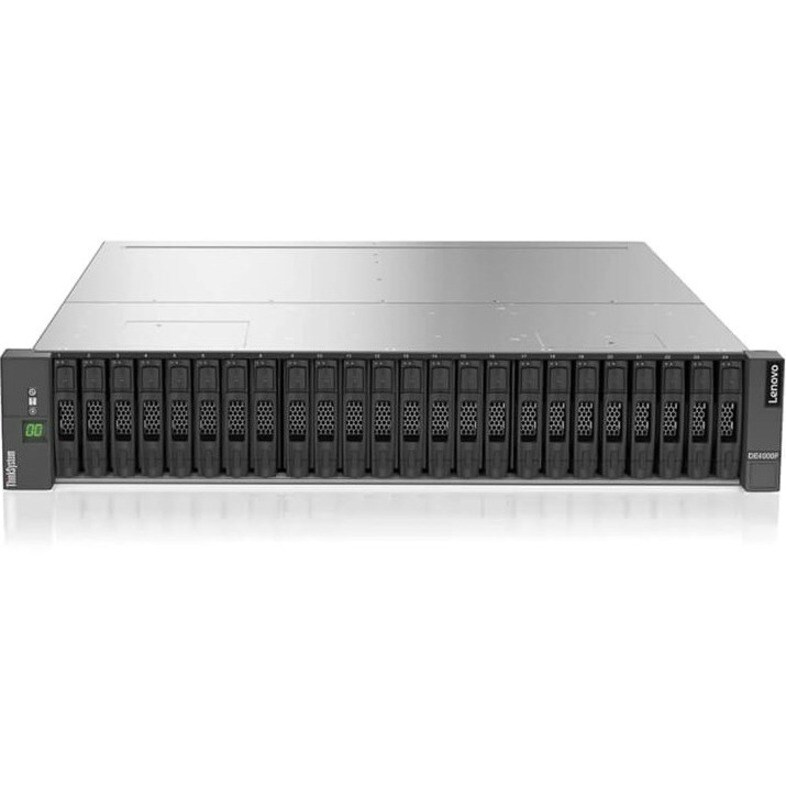

LENOVO THINKSYSTEM DE4000F FC HYBRID FLASH ARRAY SFF
Lenovo ThinkSystem DE4000F is a scalable, all flash entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000F is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, and other storage I/O-intensive applications.
ThinkSystem DE4000F models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.
The ThinkSystem DE4000F Storage Array scales up to 192 solid-state drives (SSDs) with the attachment of Lenovo ThinkSystem DE240S 2U24 SFF Expansion Enclosures.
- Featuring Gigabit Ethernet port for ultra-fast network speeds
- Through RAID levels (0, 1, 3, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
Technical Specifications
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Bays | 24 |
| "Number of 2.5"" Bays" | 24 |
| Fibre Channel | Yes |
| Number of SAS Ports (External) | 4 |
| Number of Solid State Drive Supported | 24 |
| Number of Solid State Drive Installed | No |
| Product Type | SAN Storage System |
| Manufacturer Part Number | 7Y76A001WW |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Model | DE4000F |
| Product Name | ThinkSystem DE4000F FC All Flash Array SFF |
| Product Line | ThinkSystem |
| Product Series | DE |
| Brand Name | Lenovo |
| RAID Levels | 0, 1, 3, 5, 6, 10 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| Maximum Power Supply Wattage | 913 W |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 85 mm |
| Width | 449 mm |
| Depth | 553 mm |
| Protocols | LDAP |
| SMI-S | |
| FCP | |
| SNMP | |
| SSL | |
| SSH |
