THINKSYSTEM SR630 V2 INTEL XEON SILVER 4
THINKSYSTEM SR630 V2 INTEL XEON SILVER 4
Product Overview
ThinkSystem SR630 V2 1xIntel Xeon Silver 4310 12C 2.1GHz 120W 1x32GB 2Rx4 ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Adapter 1x750W XCC Enterprise 3-year warranty

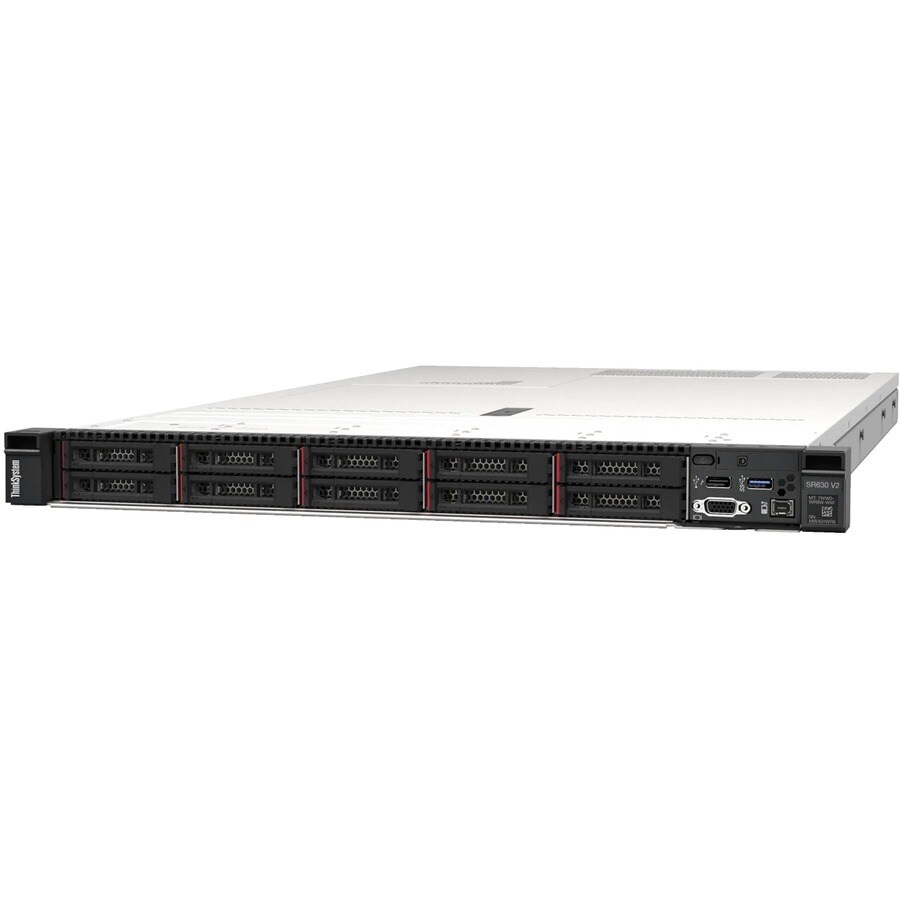

The Lenovo ThinkSystem SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- Gigabit Ethernet is very useful when a large number of file transfers are required such as when performing backups over the network
- Gigabit Ethernet port for ultra-fast network speeds
- RAID provides data reliability, fault tolerance and improves overall performance
- RAID provides data reliability, fault tolerance and improves overall performance through RAID levels (0, 1, 5, 6, 10, 50, 60, JBOD)
- 1 x 750 W power supply unit (PSU) included
- 750 W power supply unit (PSU) fulfils your system's power requirements
- 750 W power supply unit (PSU) included
- 32 GB memory offers effective multitasking
- With 32 GB memory, you can multitask between applications smoothly
Technical Specifications
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Storage
| Optical Drive Type | No |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Miscellaneous
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
Controllers
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
| Controller Model | 9350-8i |
I/O Expansions
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 2.0 |
| Number of SFF Bays | 8 |
| PCI Express Details | 2 x LP Gen4 |
Physical Characteristics
| Weight (Approximate) | 26.30 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 439.4 mm |
| Depth | 772.2 mm |
Operating System
| Operating System | No |
| Operating System Supported | Windows Server 2019 |
| Windows Server 2022 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 9.0 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| Ubuntu 18.04 LTS | |
| Ubuntu 20.04 LTS | |
| Ubuntu 22.04 LTS | |
| Windows Server 2016 |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 8 TB |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 32.0 |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7Z71A06TAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7Z71A06TAU |
| Product Name | ThinkSystem SR630 V2 7Z71A06TAU Server |
| Product Line | ThinkSystem |
| Product Series | SR630 V2 |
| Brand Name | Lenovo |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Redundant Power Supply | Yes |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
Processor
| Cache | 18 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4310 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
Price Trend
Current Price
AUD 6,931.00
