THINKSYSTEM SR650 V2 SILVER 4309Y 8C 16
THINKSYSTEM SR650 V2 SILVER 4309Y 8C 16
Product Overview

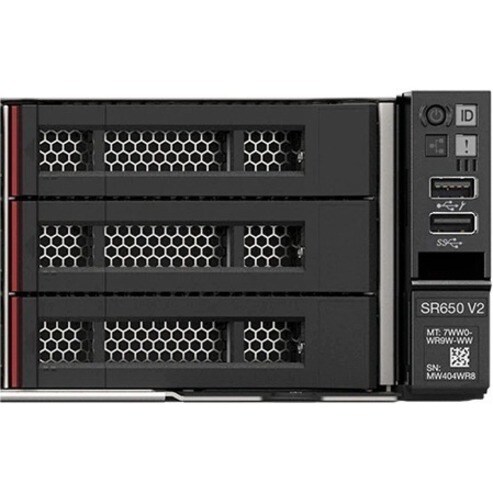

ThinkSystem SR650 V2 1xIntel Xeon Silver 4309Y 8C 2.8GHz 105W 1x16GB 2Rx8 SW RD 1x750W XCC Enterprise 3-year warranty
The Lenovo ThinkSystem SR650 V2 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Gigabit Ethernet enables higher aggregate data transfer capacity resulting in better overall performance
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- RAID provides data reliability, fault tolerance and improves overall performance
- 1 x 750 W power supply unit (PSU) included
- 750 W power supply unit (PSU) fulfils your system's power requirements
- 16 GB memory offers effective multitasking
- With 16 GB memory, improve system performance to execute complex applications
Technical Specifications
| Ethernet Technology | Gigabit Ethernet |
| Optical Drive Type | No |
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 8 |
| Total Number of Expansion Slots | 3.0 |
| Number of SFF Bays | 8 |
| PCI Express Details | 3 (x16, x8, x8) Gen4 |
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Energy Star | Yes |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Weight (Approximate) | 38.80 kg |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 86.4 mm |
| Width | 444.5 mm |
| Depth | 764.5 mm |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 750 W |
| Error Checking | ECC |
| Standard Memory | 16 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 3.20 GHz |
| Total Number of Memory Slots | 32.0 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XCC remote management |
| Operating System | No |
| Operating System Supported | Windows Server 2019 |
| Windows Server 2016 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 7.9 |
| Cache | 12 MB |
| Processor Speed | 2.80 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4309Y |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Product Type | Server |
| Manufacturer Part Number | 7Z73A03WAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7Z73A03WAU |
| Product Name | ThinkSystem SR650 V2 7Z73A03WAU Server |
| Product Line | ThinkSystem |
| Product Series | SR650 V2 |
| Brand Name | Lenovo |
