THINKSYSTEM ST650 V2 XEON SIL 4314 32GB
THINKSYSTEM ST650 V2 XEON SIL 4314 32GB
Product Overview

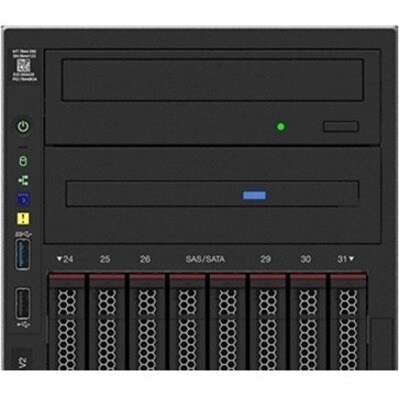

ThinkSystem ST650 V2 1xIntel Xeon Silver 4314 16C 2.4GHz 135W 1x32GB 2Rx8 SW RD 1x750W XCC Enterprise
The Lenovo ThinkSystem ST650 V2 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- RAID provides data reliability, fault tolerance and improves overall performance
- 750 W power supply unit (PSU) fulfils your system's power requirements
- 32 GB powerful memory for any computational task
Technical Specifications
Network & Communication
| Ethernet Technology | 10 Gigabit Ethernet |
Warranty
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty, 9 x 5 next business day. Optional service upgrades are available. |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
Controllers
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Miscellaneous
| Security Features |
|
| Environmentally Friendly | Yes |
| Energy Star | Yes |
Physical Characteristics
| Weight (Approximate) | 39.28 kg |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 462 mm |
| Width | 175 mm |
| Depth | 734 mm |
Memory
| Error Checking | ECC |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Occupied Memory Slots | 1.0 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 3.20 GHz |
Operating System
| Operating System Supported | Red Hat Enterprise Linux 7.9 |
| Red Hat Enterprise Linux 9.1 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 9.0 | |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| SUSE Linux Enterprise Server 15 SP4 | |
| Ubuntu 18.04 LTS | |
| Ubuntu 22.04 LTS | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 8.2 |
I/O Expansions
| "Number of External 5.25"" Bays" | 2.0 |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 10 |
| Total Number of Expansion Slots | 9.0 |
| Hot Swappable Bays | Yes |
| PCI Express x8 (Gen 3.x) Slots | 1 |
| Number of SFF Bays | 8 |
| PCI Express Details | Up to 9 slots total (1 is optional) 4x PCIe 4.0 x16 slots Up to 4x PCIe x8 (3x Gen4, 1x Gen3) 1x PCIe 4.0 x4 slot |
Interfaces/Ports
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
Power Description
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7Z74A00QAU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7Z74A00QAU |
| Product Name | ThinkSystem ST650 V2 7Z74A00QAU Server |
| Product Line | ThinkSystem |
| Product Series | ST650 V2 |
| Brand Name | Lenovo |
Processor
| Cache | 24 MB |
| Processor Speed | 2.40 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4314 |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
