Product Overview

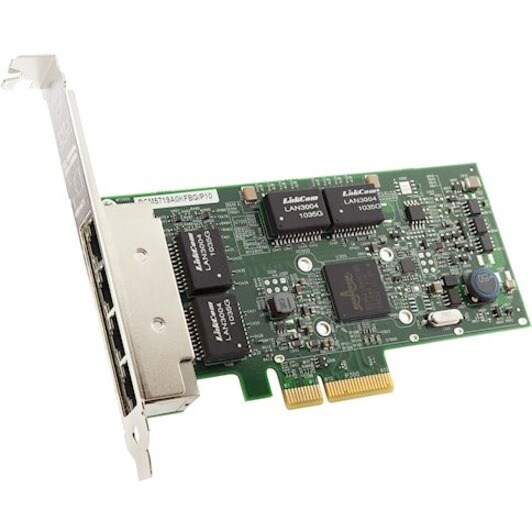

THINKSYSTEM BROADCOM NETXTREME PCIE 1GB 4 PORT RJ45 ETHERNET ADAPTER
The Broadcom NetXtreme Gigabit Ethernet Adapters are a family of high performance PCI Express adapters. The adapters are available with either two ports or four ports and are supported on ThinkSystem and System x servers.
Did you know?
The NetXtreme Quad Port Ethernet Adapter is an ideal way to implement a virtualization solution using your existing Gigabit Ethernet network. With four copper-based Gigabit ports on a single PCI Express 2.0 x4 interface, the adapter provides the density and capacity you need to support large numbers of virtualized systems on one server.
- Enjoy superfast data transfer of up to 2000 MB/s with PCI Express 2.0 x4 card, between the network card and motherboards
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 1000Base-T technology get up to 1000Mbps data transfer rate over the twisted pair cable
- Enjoy the super fast Gigabit Ethernet connection by inserting this Gigabit Ethernet card into your computer
- With quad ports on a single card, save valuable expansion slots on your system for other purposes
Technical Specifications
| Media Type Supported | Twisted Pair |
| Device Supported | Server |
| Product Type | Gigabit Ethernet Card |
| Manufacturer Part Number | 7ZT7A00484 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Packaged Quantity | 1 |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem NetXtreme PCIe 1Gb 4-Port RJ45 Ethernet Adapter By Broadcom |
| Brand Name | Lenovo |
| Network Technology | 1000Base-T |
| Host Interface | PCI Express 2.0 x4 |
| Number of Network (RJ-45) Ports | 4 |
| Total Number of Ports | 4 |
| Form Factor | Plug-in Card |
| Height | 69 mm |
| Width | 19 mm |
| Depth | 132 mm |
