ThinkSystem 10Gb 4-port Base-T LOM
ThinkSystem 10Gb 4-port Base-T LOM
Product Overview

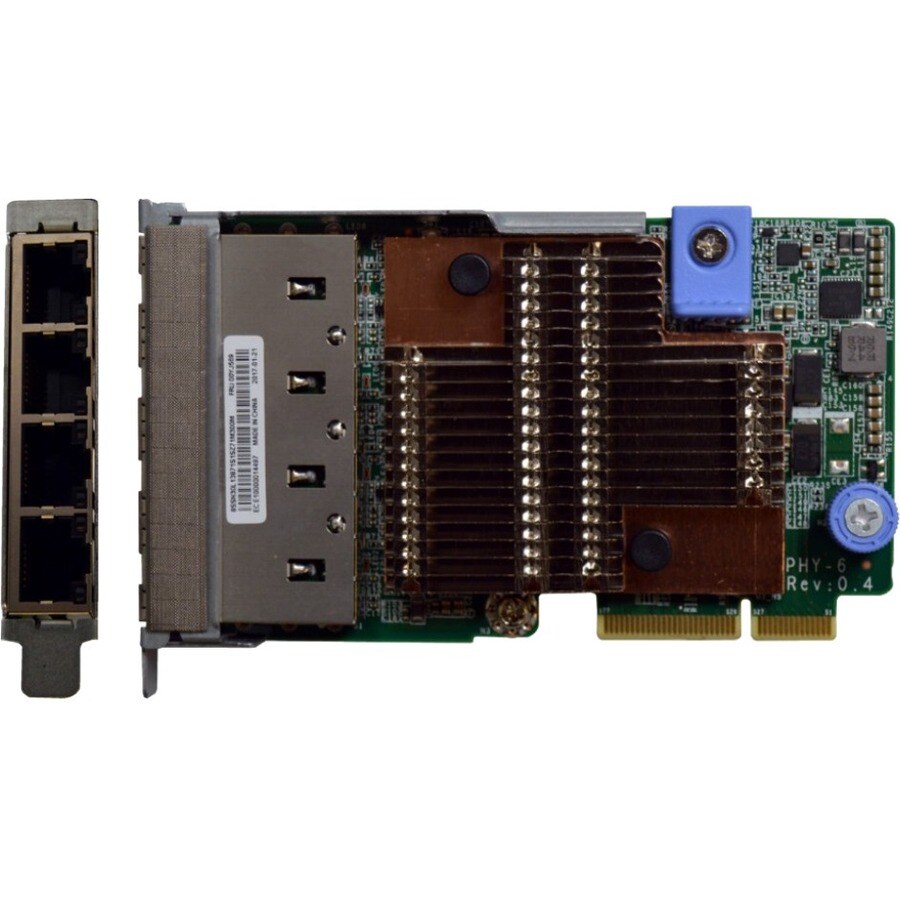

ThinkSystem 10Gb 4-port Base-T LOM
The Intel Ethernet Connection X722 is a network controller embedded into the Intel C624 "Lewisburg" PCH chipset of Lenovo ThinkSystem servers. The controller connects to available 10 GbE and 1 Gigabit Ethernet LAN-on-motherboard (LOM) adapter cards and onboard connectors to provide a comprehensive 1 GbE / 10 GbE networking solution for ThinkSystem customers. ThinkSystem servers support either 10 Gb Ethernet copper or optical connections, or Gigabit Ethernet connections depending on the server model.Did you know?
The Intel Ethernet Connection X722 shares the same core and drivers as the Intel X710 adapters making driver management easier of existing customers.
ThinkSystem LOM adapters are cost-effective adapters that take advantage of the X722 controller embedded in Intel Xeon Processor Scalable Family chipset and offer the flexibility advantages of a PCIe adapter while supporting integrated networking features, such as Wake-on-LAN and direct connectivity to the XClarity Controller management processor for NC-SI-compliant systems management.
- Enjoy superfast data transfer of up to 250 MB/s with PCI Express card, between the network card and motherboards
- This 250 MB/s bandwidth PCI Express adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
- 10Gigabit Ethernet card offers the flexibility and scalability to make infrastructure run as efficiently and productively as possible with 10Gigabit data transfer rate
- To accelerate IT services, increase data centre efficiency and double your bandwidth without doubling your costs and complexity use this 10Gigabit Ethernet
- This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centred environments demanding virtualization, converged infrastructure, and power reduction
- With quad ports on a single card, save valuable expansion slots on your system for other purposes
Technical Specifications
Media & Performance
| Media Type Supported | Twisted Pair |
Network & Communication
| Network Technology | 10GBase-T |
General Information
| Product Type | 10Gigabit Ethernet Card |
| Manufacturer Part Number | 7ZT7A00549 |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 10Gb 4-port Base-T LOM |
| Brand Name | Lenovo |
Physical Characteristics
| Form Factor | Plug-in Card |
Interfaces/Ports
| Host Interface | PCI Express |
| Number of Network (RJ-45) Ports | 4 |
| Total Number of Ports | 4 |
Miscellaneous
| Device Supported | Server |
| Country of Origin | China |
| Environmentally Friendly | Yes |
Price Trend
Current Price
AUD 631.00
